GKS-113 302 180 A 5002 INGUN
Hersteller: INGUNCategory: Contact Probes

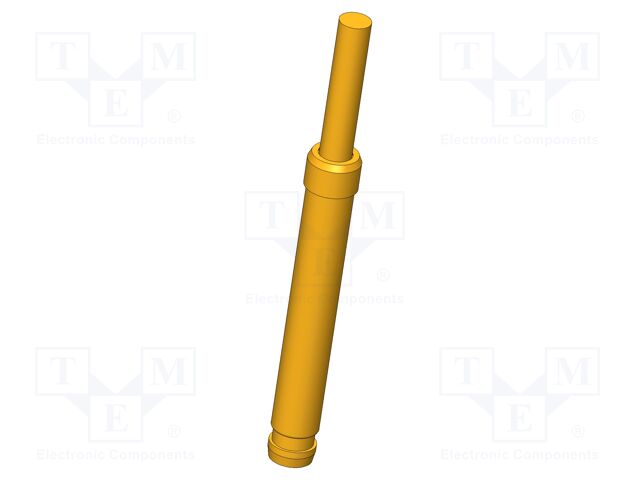

Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm
Length: 27.3mm
Current rating: 8A
Contact material: CuBe
Mounting: push-in
Blade tip shape: flat
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.8mm
Test accessories features: magnetic
Manufacturer series: GKS-113
Contact plating: gold-plated
Spring compression force: 5N
Max. contact resistance:: 30mΩ
Operating temperature: -40...80°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 302 180 A 5002 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm, Length: 27.3mm, Current rating: 8A, Contact material: CuBe, Mounting: push-in, Blade tip shape: flat, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.8mm, Test accessories features: magnetic, Manufacturer series: GKS-113, Contact plating: gold-plated, Spring compression force: 5N, Max. contact resistance:: 30mΩ, Operating temperature: -40...80°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-113 302 180 A 5002
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-113 302 180 A 5002 | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm Length: 27.3mm Current rating: 8A Contact material: CuBe Mounting: push-in Blade tip shape: flat Type of test accessories: test needle Maksimum spring compression: 5.3mm Operational spring compression: 4mm Tip diameter: 1.8mm Test accessories features: magnetic Manufacturer series: GKS-113 Contact plating: gold-plated Spring compression force: 5N Max. contact resistance:: 30mΩ Operating temperature: -40...80°C |
Produkt ist nicht verfügbar |
