Produkte > INGUN > GKS-113 302 400 A 3005 C

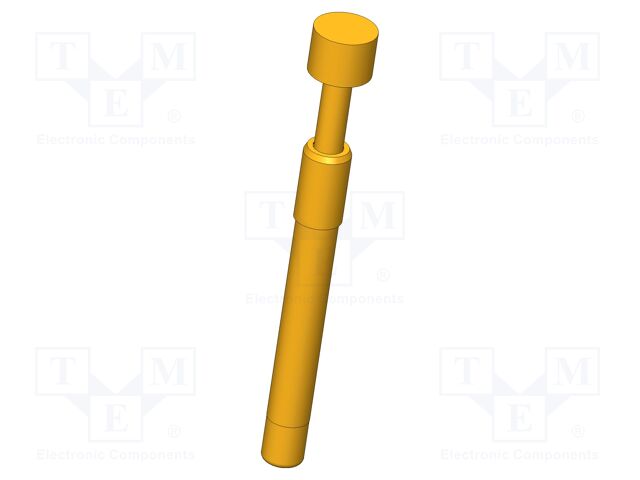

GKS-113 302 400 A 3005 C

GKS-113 302 400 A 3005 C INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BE7F6B7900D6&compId=GKS-113-1526.pdf?ci_sign=7f494d1f87076c20da4a6aeeae6405ae8fc4d733 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 4mm; 3N
Contact material: CuBe
Type of test accessories: test needle
Blade tip shape: cylinder; flat
Mounting: push-in
Manufacturer series: GKS-113
Contact plating: gold-plated
Test accessories features: magnetic
Operating temperature: -100...200°C
Tip diameter: 4mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 100mΩ
Length: 30.3mm
Current rating: 8A
Spring compression force: 3N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-113 302 400 A 3005 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 4mm; 3N, Contact material: CuBe, Type of test accessories: test needle, Blade tip shape: cylinder; flat, Mounting: push-in, Manufacturer series: GKS-113, Contact plating: gold-plated, Test accessories features: magnetic, Operating temperature: -100...200°C, Tip diameter: 4mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 100mΩ, Length: 30.3mm, Current rating: 8A, Spring compression force: 3N, Anzahl je Verpackung: 1 Stücke.
