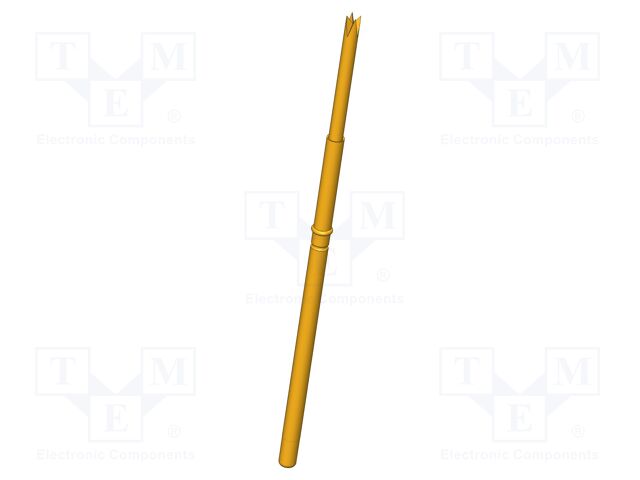

GKS-204 214 130 A 1510 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.3mm
Type of test accessories: test needle
Operational spring compression: 8mm
Maksimum spring compression: 10mm
Current rating: 5A
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 1.3mm
Manufacturer series: GKS-204
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 47.9mm
Spring compression force: 1.5N
Anzahl je Verpackung: 1 Stücke
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.3mm
Type of test accessories: test needle
Operational spring compression: 8mm
Maksimum spring compression: 10mm
Current rating: 5A
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 1.3mm
Manufacturer series: GKS-204
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 47.9mm
Spring compression force: 1.5N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-204 214 130 A 1510 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.3mm, Type of test accessories: test needle, Operational spring compression: 8mm, Maksimum spring compression: 10mm, Current rating: 5A, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Contact material: steel, Blade tip shape: 4-point; corona, Tip diameter: 1.3mm, Manufacturer series: GKS-204, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 47.9mm, Spring compression force: 1.5N, Anzahl je Verpackung: 1 Stücke.
