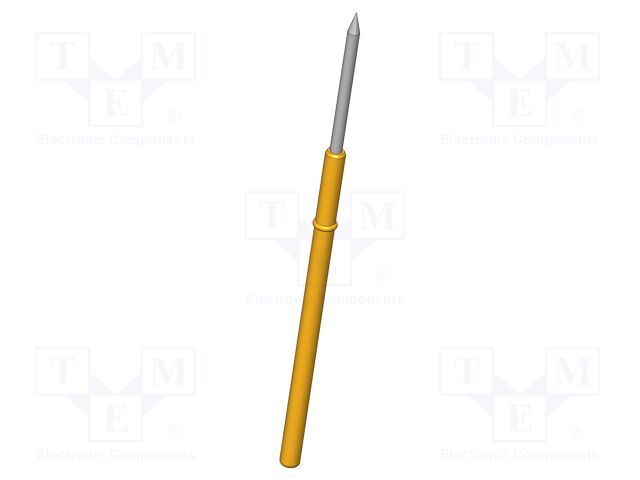

GKS-412 201 100 R 3007 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 1mm; 3N
Mounting: push-in
Operating temperature: -40...80°C
Blade tip shape: cone; sharp
Manufacturer series: GKS-412
Contact plating: rhodium plated
Test accessories features: magnetic; self-cleaning
Contact material: steel
Type of test accessories: test needle
Tip diameter: 1mm
Flange height: 7mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Max. contact resistance:: 20mΩ
Length: 41.8mm
Spring compression force: 3N
Current rating: 5A
Category: Contact Probes
Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 1mm; 3N
Mounting: push-in
Operating temperature: -40...80°C
Blade tip shape: cone; sharp
Manufacturer series: GKS-412
Contact plating: rhodium plated
Test accessories features: magnetic; self-cleaning
Contact material: steel
Type of test accessories: test needle
Tip diameter: 1mm
Flange height: 7mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Max. contact resistance:: 20mΩ
Length: 41.8mm
Spring compression force: 3N
Current rating: 5A
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-412 201 100 R 3007 INGUN
Category: Contact Probes, Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 1mm; 3N, Mounting: push-in, Operating temperature: -40...80°C, Blade tip shape: cone; sharp, Manufacturer series: GKS-412, Contact plating: rhodium plated, Test accessories features: magnetic; self-cleaning, Contact material: steel, Type of test accessories: test needle, Tip diameter: 1mm, Flange height: 7mm, Operational spring compression: 8mm, Maksimum spring compression: 9.8mm, Max. contact resistance:: 20mΩ, Length: 41.8mm, Spring compression force: 3N, Current rating: 5A.
