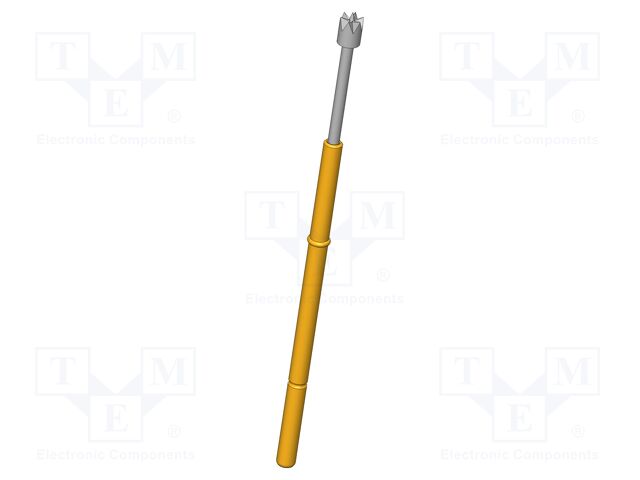

GKS-412 224 200 R 1510 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N
Type of test accessories: test needle
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Current rating: 5A
Contact plating: rhodium plated
Contact material: steel
Blade tip shape: 6-point; corona; with middle point
Tip diameter: 2mm
Manufacturer series: GKS-412
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: high middle point; magnetic; self-cleaning
Length: 44.8mm
Spring compression force: 1.5N
Flange height: 10mm
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N
Type of test accessories: test needle
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Current rating: 5A
Contact plating: rhodium plated
Contact material: steel
Blade tip shape: 6-point; corona; with middle point
Tip diameter: 2mm
Manufacturer series: GKS-412
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: high middle point; magnetic; self-cleaning
Length: 44.8mm
Spring compression force: 1.5N
Flange height: 10mm
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-412 224 200 R 1510 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N, Type of test accessories: test needle, Operational spring compression: 8mm, Maksimum spring compression: 9.8mm, Current rating: 5A, Contact plating: rhodium plated, Contact material: steel, Blade tip shape: 6-point; corona; with middle point, Tip diameter: 2mm, Manufacturer series: GKS-412, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: high middle point; magnetic; self-cleaning, Length: 44.8mm, Spring compression force: 1.5N, Flange height: 10mm, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.
