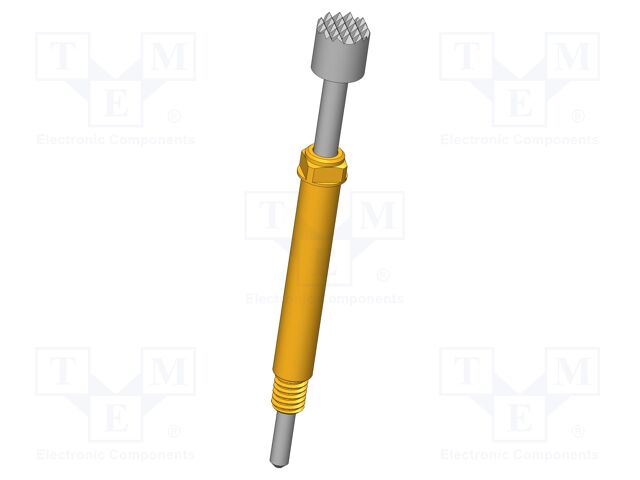

GKS-503 306 400 R 1502 M

GKS-503 306 400 R 1502 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA6B7DDD09C8B80D6&compId=GKS-503-0046.pdf?ci_sign=a3521802f563748db197c986ba54f733c2f7d004 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 5.6mm; 7mm; 8A; CuBe; Ø: 4mm; 1.5N
Type of test accessories: test needle
Operational spring compression: 5.6mm
Maksimum spring compression: 7mm
Current rating: 8A
Contact material: CuBe
Contact plating: rhodium plated
Tip diameter: 4mm
Blade tip shape: serrated
Manufacturer series: GKS-503
Max. contact resistance:: 30mΩ
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic
Length: 38mm
Spring compression force: 1.5N
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-503 306 400 R 1502 M INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 5.6mm; 7mm; 8A; CuBe; Ø: 4mm; 1.5N, Type of test accessories: test needle, Operational spring compression: 5.6mm, Maksimum spring compression: 7mm, Current rating: 8A, Contact material: CuBe, Contact plating: rhodium plated, Tip diameter: 4mm, Blade tip shape: serrated, Manufacturer series: GKS-503, Max. contact resistance:: 30mΩ, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic, Length: 38mm, Spring compression force: 1.5N.
