GKS-747 329 298 A 3002 M INGUN
Hersteller: INGUNCategory: Contact Probes

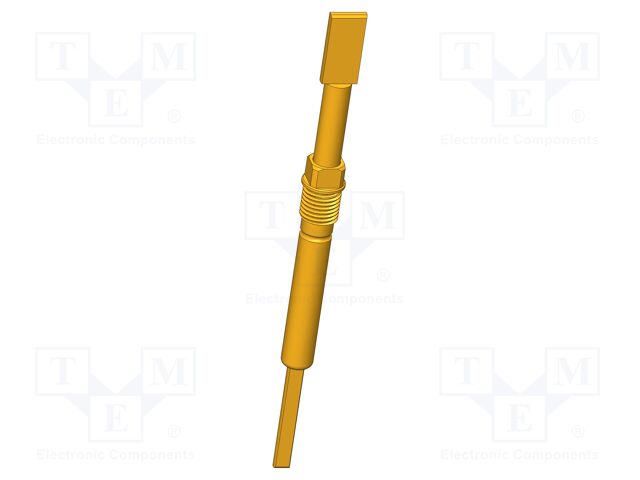

Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2.9mm
Manufacturer series: GKS-747
Max. contact resistance:: 30mΩ
Operating temperature: -40...80°C
Current rating: 8A
Length: 40mm
Contact material: CuBe
Blade tip shape: rounded
Type of test accessories: test needle
Maksimum spring compression: 5mm
Operational spring compression: 4mm
Tip diameter: 2.9mm
Test accessories features: magnetic
Spring compression force: 3N
Mounting: screw-in
Contact plating: gold-plated
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-747 329 298 A 3002 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2.9mm, Manufacturer series: GKS-747, Max. contact resistance:: 30mΩ, Operating temperature: -40...80°C, Current rating: 8A, Length: 40mm, Contact material: CuBe, Blade tip shape: rounded, Type of test accessories: test needle, Maksimum spring compression: 5mm, Operational spring compression: 4mm, Tip diameter: 2.9mm, Test accessories features: magnetic, Spring compression force: 3N, Mounting: screw-in, Contact plating: gold-plated, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-747 329 298 A 3002 M
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-747 329 298 A 3002 M | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2.9mm Manufacturer series: GKS-747 Max. contact resistance:: 30mΩ Operating temperature: -40...80°C Current rating: 8A Length: 40mm Contact material: CuBe Blade tip shape: rounded Type of test accessories: test needle Maksimum spring compression: 5mm Operational spring compression: 4mm Tip diameter: 2.9mm Test accessories features: magnetic Spring compression force: 3N Mounting: screw-in Contact plating: gold-plated |
Produkt ist nicht verfügbar |
