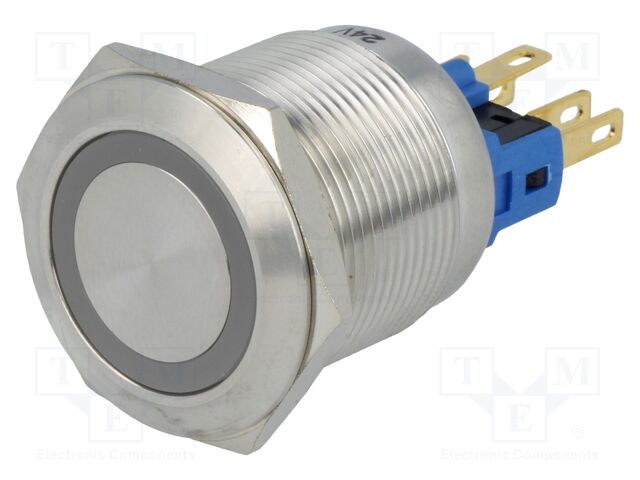

GQ22-11ZE/B/24V ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
Type of switch: vandal resistant
Stable positions number: 2
Contacts configuration: SPST-NO + SPST-NC
Illumination: LED; ring
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø22mm
Related items: M22-11D
Operating temperature: -20...55°C
Switching method: ON-ON
Ring shape: rounded
Contact material: silver alloy
Max. contact resistance:: 50mΩ
Operating Force: 5.5N
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Electrical life: 50000 cycles
Body material: stainless steel
Body colour: silver
Backlight colour: blue
Leads: for soldering
Anzahl je Verpackung: 1 Stücke
auf Bestellung 64 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 14.56 EUR |
| 20+ | 13.73 EUR |
| 100+ | 12.13 EUR |
