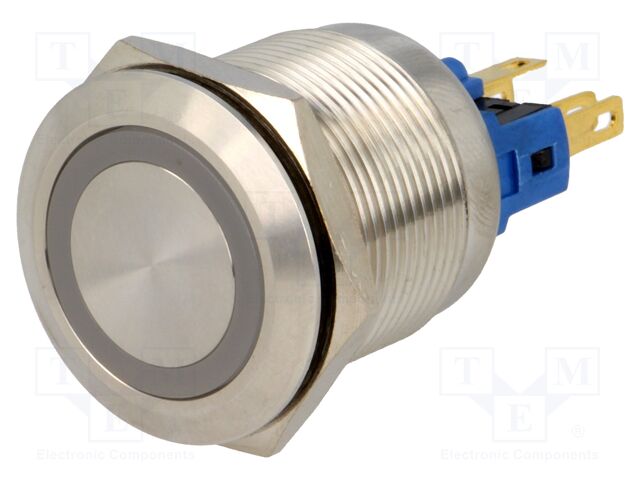

GQ22-11ZE/G/24V ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPST-NO + SPST-NC
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 24V
Leads: for soldering
Operating temperature: -20...55°C
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 5.5N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø22mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Test voltage: 2kV
Contact material: silver alloy
Stable positions number: 2
Related items: M22-11D
Anzahl je Verpackung: 1 Stücke
auf Bestellung 72 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 5+ | 15.86 EUR |
| 7+ | 10.57 EUR |
