Produkte > ONPOW > GQ22-11ZE/R/24/A

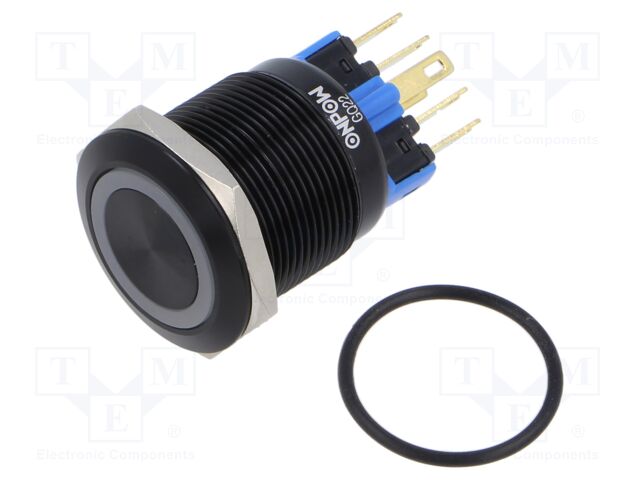

GQ22-11ZE/R/24/A ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED929AEDBED20C7&compId=GQ22-11E.pdf?ci_sign=f0fde5331ee46abc0fabd71a81769b253f9d4101

Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST-NO + SPST-NC
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Test voltage: 1.5kV
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø22mm
Body colour: black
Body material: aluminium
Ring shape: rounded
Contact material: silver alloy
Related items: M22-11D
Operating temperature: -25...55°C
Backlight colour: red
Illumination voltage: 24V

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details GQ22-11ZE/R/24/A ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPST-NO + SPST-NC, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, IP rating: IP65, Switching method: ON-ON, Illumination: LED; ring, Test voltage: 1.5kV, Leads: for soldering, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Mechanical durability: 1000000 cycles, Button shape: flat, Mounting hole diameter: Ø22mm, Body colour: black, Body material: aluminium, Ring shape: rounded, Contact material: silver alloy, Related items: M22-11D, Operating temperature: -25...55°C, Backlight colour: red, Illumination voltage: 24V.
