Produkte > HT INSTRUMENTS > HT7005
HT7005

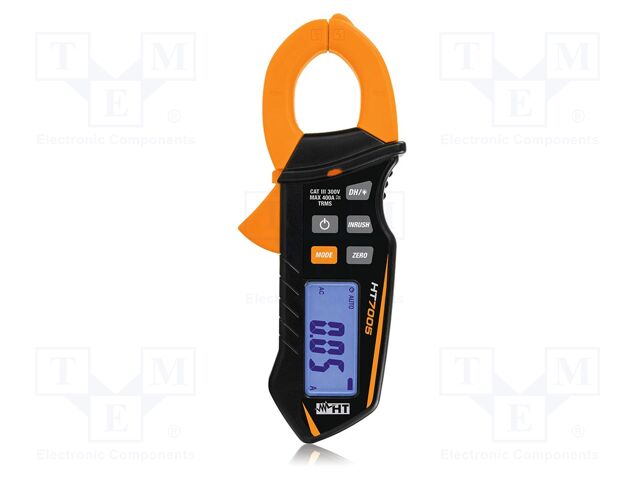

HT7005 HT INSTRUMENTS

pVersion=0046&contRep=ZT&docId=005056AB281E1FD08CC5F044807860DE&compId=HTI-HP007005-DTE.pdf?ci_sign=23d2e2efe33dc6d0b44ee3bd9f844435e0d4753c pVersion=0046&contRep=ZT&docId=005056AB281E1FD08CC5F6D8E767A0DE&compId=HTI-HP007005-INS.pdf?ci_sign=5e823fa1a7c192145042cd4a4f42e8f8b5f788cd Hersteller: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Meter: ammeter; pincers type; Øcable: 20mm; LCD; I DC: 40A,400A
Conform to the norm: CAT III 300V; EN 61010-1; EN 61326-1
Illumination: yes
Dimensions: 155x60x25mm
Standard equipment: carrying case; user's manual
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; zeroing function
Type of meter: ammeter
Pollution degree: 2
Max. diameter of measured cable: 20mm
True effective value measurement: True RMS
Measurement: AC current; DC current; inrush current
Kind of meter: pincers type
AC current measuring range: 40A; 400A
DC current measuring range: 40A; 400A
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
AC current measuring accuracy: ±(2.5% + 10 digit)
DC current measuring accuracy: ±(2.5% + 10 digit)
Operating temperature: 5...40°C
Kind of display used: LCD
Power supply: battery LR03 AAA 1,5V x2
IP rating: IP30
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HT7005 HT INSTRUMENTS

Category: Meters and AC/DC Clamp Probes, Description: Meter: ammeter; pincers type; Øcable: 20mm; LCD; I DC: 40A,400A, Conform to the norm: CAT III 300V; EN 61010-1; EN 61326-1, Illumination: yes, Dimensions: 155x60x25mm, Standard equipment: carrying case; user's manual, Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; zeroing function, Type of meter: ammeter, Pollution degree: 2, Max. diameter of measured cable: 20mm, True effective value measurement: True RMS, Measurement: AC current; DC current; inrush current, Kind of meter: pincers type, AC current measuring range: 40A; 400A, DC current measuring range: 40A; 400A, Battery/ rechargeable battery: battery LR03 AAA 1,5V x2, AC current measuring accuracy: ±(2.5% + 10 digit), DC current measuring accuracy: ±(2.5% + 10 digit), Operating temperature: 5...40°C, Kind of display used: LCD, Power supply: battery LR03 AAA 1,5V x2, IP rating: IP30.
