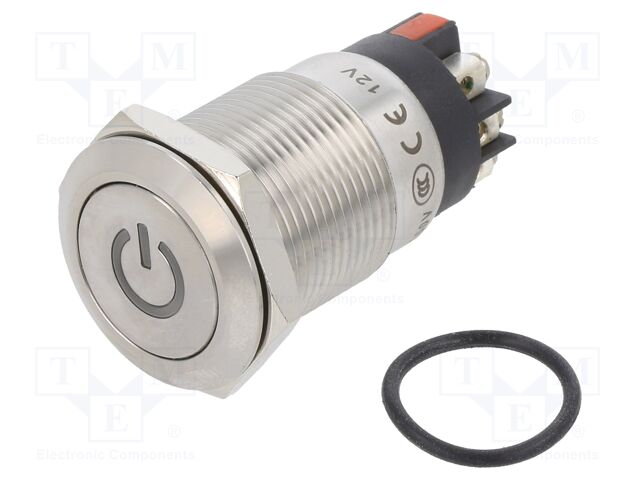

LAS1GQF-11DT/L/R/12V/S ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-(ON)
Illumination: LED; point
Backlight colour: red
Illumination voltage: 12V
Test voltage: 1.5kV
Leads: screw terminals
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...55°C
Related items: M12-19F
Manufacturer series: LAS1GQ
Actuator colour: silver
Min. insulation resistance: 1GΩ
Button marking: POWER
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 15.50 EUR |
| 7+ | 10.71 EUR |
| 8+ | 10.11 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS1GQF-11DT/L/R/12V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPDT, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, IP rating: IP65, Switching method: ON-(ON), Illumination: LED; point, Backlight colour: red, Illumination voltage: 12V, Test voltage: 1.5kV, Leads: screw terminals, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Mechanical durability: 1000000 cycles, Button shape: flat, Mounting hole diameter: Ø19mm, Body colour: silver, Body material: stainless steel, Ring shape: rounded, Contact material: silver alloy, Operating temperature: -25...55°C, Related items: M12-19F, Manufacturer series: LAS1GQ, Actuator colour: silver, Min. insulation resistance: 1GΩ, Button marking: POWER, Anzahl je Verpackung: 1 Stücke.
