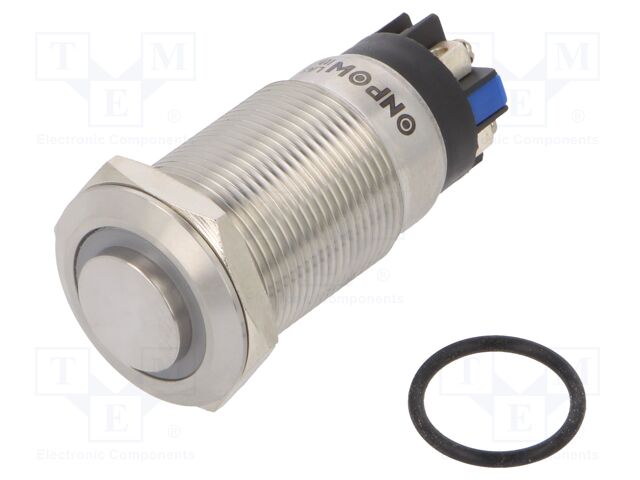

LAS1GQH-11ZE/L/B/24V/S ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Manufacturer series: LAS1GQ
Body colour: silver
Backlight colour: blue
Leads: screw terminals
Related items: M12-19H
Button shape: prominent
IP rating: IP65
Illumination: LED; ring
Switching method: ON-ON
Body material: stainless steel
Type of switch: vandal resistant
Ring shape: rounded
Actuator colour: silver
Contact material: silver alloy
Operating temperature: -25...55°C
Mounting hole diameter: Ø19mm
Max. contact resistance:: 50mΩ
Stable positions number: 2
Number of positions: 2
AC contacts rating @R: 3A / 220V AC
Operating Force: 4N
DC contacts rating @R: 5A / 24V DC
Illumination voltage: 24V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Contacts configuration: SPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 14.3 EUR |
| 20+ | 10 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS1GQH-11ZE/L/B/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Manufacturer series: LAS1GQ, Body colour: silver, Backlight colour: blue, Leads: screw terminals, Related items: M12-19H, Button shape: prominent, IP rating: IP65, Illumination: LED; ring, Switching method: ON-ON, Body material: stainless steel, Type of switch: vandal resistant, Ring shape: rounded, Actuator colour: silver, Contact material: silver alloy, Operating temperature: -25...55°C, Mounting hole diameter: Ø19mm, Max. contact resistance:: 50mΩ, Stable positions number: 2, Number of positions: 2, AC contacts rating @R: 3A / 220V AC, Operating Force: 4N, DC contacts rating @R: 5A / 24V DC, Illumination voltage: 24V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 1GΩ, Contacts configuration: SPDT, Anzahl je Verpackung: 1 Stücke.
