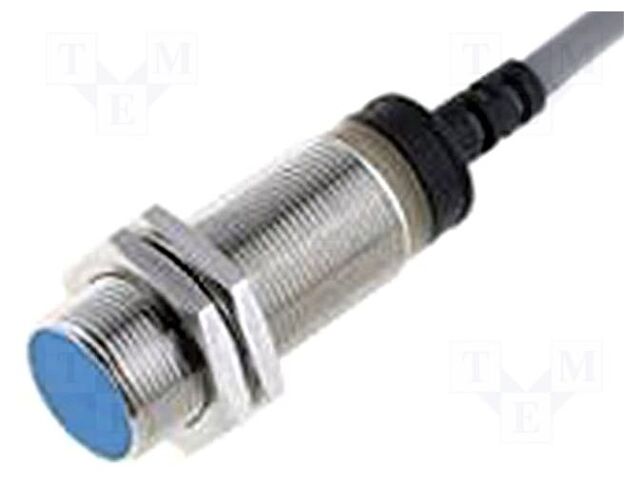

LR18BF05DPC LANBAO
Hersteller: LANBAO
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NC; 0÷5mm; 10÷30VDC; M18; IP67; 200mA
Operating temperature: -25...70°C
Output configuration: PNP / NC
Connection: lead
Kind of forehead: embedded
Lead length: 2m
IP rating: IP67
Type of sensor: inductive
Supply voltage: 10...30V DC
Overall length: 50mm
Max. operating current: 200mA
Switching frequency max: 1kHz
Switch housing: M18
Range: 0...5mm
Anzahl je Verpackung: 1 Stücke
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NC; 0÷5mm; 10÷30VDC; M18; IP67; 200mA
Operating temperature: -25...70°C
Output configuration: PNP / NC
Connection: lead
Kind of forehead: embedded
Lead length: 2m
IP rating: IP67
Type of sensor: inductive
Supply voltage: 10...30V DC
Overall length: 50mm
Max. operating current: 200mA
Switching frequency max: 1kHz
Switch housing: M18
Range: 0...5mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details LR18BF05DPC LANBAO
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NC; 0÷5mm; 10÷30VDC; M18; IP67; 200mA, Operating temperature: -25...70°C, Output configuration: PNP / NC, Connection: lead, Kind of forehead: embedded, Lead length: 2m, IP rating: IP67, Type of sensor: inductive, Supply voltage: 10...30V DC, Overall length: 50mm, Max. operating current: 200mA, Switching frequency max: 1kHz, Switch housing: M18, Range: 0...5mm, Anzahl je Verpackung: 1 Stücke.
