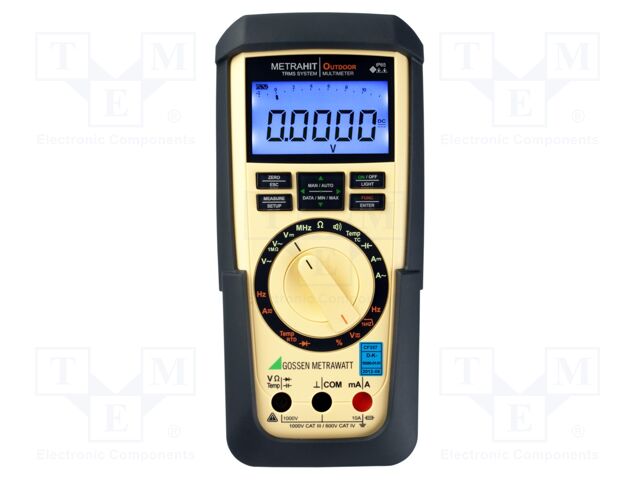

METRAHIT OUTDOOR GOSSEN METRAWATT
Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4,5 digit (19999); 2x/s; True RMS
Type of meter: digital multimeter
Measuring instrument features: 10A/1000V fuse; automatic power-off; HOLD function; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; with power pack socket
Kind of display used: LCD
Bargraph: yes
Sampling: 2x/s
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0,05% + 3 digits)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC voltage measuring accuracy: ±(0,5% + 9 digits)
AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 10A
DC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 10A
DC current measuring accuracy: ±(0,5% + 3 digits)
AC current measuring accuracy: ±(1,5% + 10 digits)
True effective value measurement: True RMS
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 40MΩ
Resistance measuring accuracy: ±(0,2% + 5 digits)
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF
Capacitance measuring accuracy: ±(1% + 6 digits)
Frequency measuring range: 15Hz...20kHz
Frequency measuring accuracy: ±(1% + 9 digits)
Temperature measuring range: -250...1372°C
Temperature measurement accuracy: ±(0,3% + 15 digit)
Temperature measurement resolution: 0.1°C
Diode test: 5.1V
Continuity test: acoustic indication; <100Ω
Pollution degree: 2
Operating temperature: -10...50°C
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; test leads KS17-2; user's manual
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Interface: IR
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 200x87x45mm
Display parameters: 4,5 digit (19999)
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Memory capacity: 4Mb
Weight with battery: 350g
Producer guarantee (months): 36
IP rating: IP65
Manufacturer series: METRAHIT
