MSOX6002A

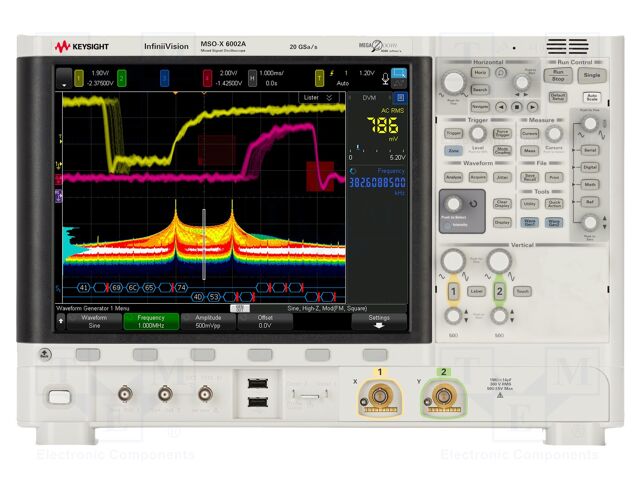

MSOX6002A KEYSIGHT


pVersion=0046&contRep=ZT&docId=005056AB90B41EDA94C94E4A80BBE0C4&compId=6000-X-SERIES.pdf?ci_sign=2beb8597779cd243c2912b0bc01dd7a7ecfd4edc Hersteller: KEYSIGHT
Category: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 2; 1GHz; 20Gsps; 4Mpts; ≤350ps
Type of oscilloscope: mixed signal
Number of channels: 2
Band: 1GHz
Sampling: 20Gsps
Memory record length: 4Mpts
Kind of display used: LCD TFT 12,1"
Trigger modes: automatic; normal; single; triggered
Trigger: falling-edge; fall time; impulse width; Infinii Scan Zone; interval; risetime; rising-edge; runt; video signal; with delay
Time base: 500p...50s/div
Max. input voltage: 40V
Vertical resolution: 8bit
Input coupling: AC, DC
Trigger coupling: AC; DC; highpass; lowpass; noise
Interface: USB
Manufacturer series: InfiniiVision 6000 X-SERIES MSO
Rise time: ≤350ps
Input impedance: 1MΩ/14pF
Input sensitivity: 1mV/div...5V/div
Measuring instrument features: automatic measurement of many parameters; Histogram - graphical visualisation of measurement results; mathematical functions: addition, subtraction, division, multiplication and FFT; multilanguage menu; X-Y, ROLL, MAIN operation mode
Standard equipment: calibration certificate; mains cable; oscilloscope probe x2; test probes
Supply voltage: 100...240V AC
Touchpad: yes
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Body dimensions: 425x288x148mm
Trigger source: CH1; CH2; digital channel (D0...D15); external signal; line; supply voltage source
Supply voltage 400Hz: 100...120V AC
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
