NA B110HB-DN2 PIZZATO ELETTRICA
Hersteller: PIZZATO ELETTRICACategory: Limit Switches

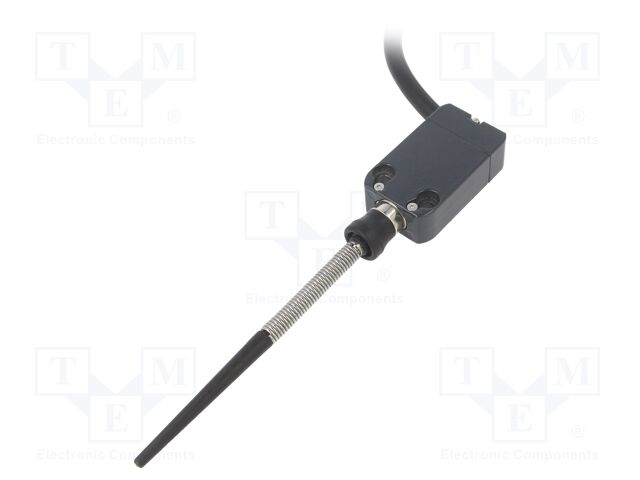

Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead; 2m; IP67
IP rating: IP67
Operating temperature: -25...80°C
Number of mounting holes: 2
Mounting holes pitch: 20mm
Body material: metal
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switches features: snap action contacts
Switched voltage: max. 250V AC; max. 250V DC
Contact current max.: 10A
Switching frequency max: 1Hz
Output configuration: NO + NC
Connection: lead
Kind of actuator: plunger on spring loaded element, total length 119,9mm
Lead length: 2m
Type of sensor: limit switch
Body dimensions: 39x30x16mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 12 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 30.62 EUR |
| 10+ | 30.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NA B110HB-DN2 PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead; 2m; IP67, IP rating: IP67, Operating temperature: -25...80°C, Number of mounting holes: 2, Mounting holes pitch: 20mm, Body material: metal, AC contacts rating @R: 4A / 250V AC, DC contacts rating @R: 0.3A / 250V DC, Switches features: snap action contacts, Switched voltage: max. 250V AC; max. 250V DC, Contact current max.: 10A, Switching frequency max: 1Hz, Output configuration: NO + NC, Connection: lead, Kind of actuator: plunger on spring loaded element, total length 119,9mm, Lead length: 2m, Type of sensor: limit switch, Body dimensions: 39x30x16mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NA B110HB-DN2 nach Preis ab 30.2 EUR bis 30.62 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
NA B110HB-DN2 | Hersteller : PIZZATO ELETTRICA |
Category: Limit Switches Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead; 2m; IP67 IP rating: IP67 Operating temperature: -25...80°C Number of mounting holes: 2 Mounting holes pitch: 20mm Body material: metal AC contacts rating @R: 4A / 250V AC DC contacts rating @R: 0.3A / 250V DC Switches features: snap action contacts Switched voltage: max. 250V AC; max. 250V DC Contact current max.: 10A Switching frequency max: 1Hz Output configuration: NO + NC Connection: lead Kind of actuator: plunger on spring loaded element, total length 119,9mm Lead length: 2m Type of sensor: limit switch Body dimensions: 39x30x16mm |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
