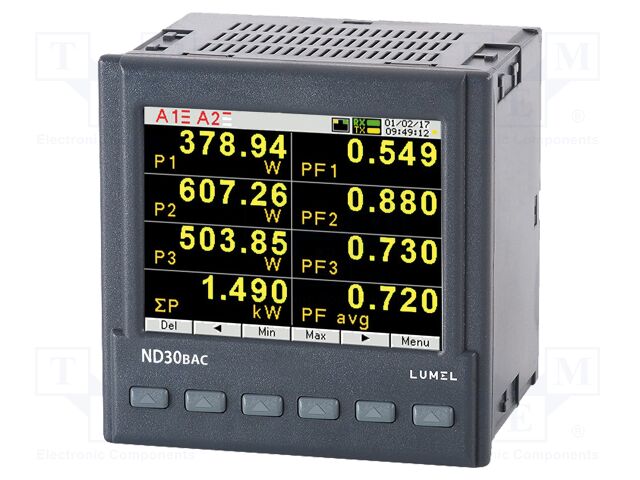

ND30BAC 212100M0 LUMEL

Category: Power Network Meters and Analyzers, Description: Meter: network parameters; digital,mounting; LCD TFT 3,5"; 1A,5A, Output: relay x2, Operating temperature: -10...55°C, Kind of display used: LCD TFT 3,5", IP rating: IP65, Supply voltage: 85...253V AC; 90...300V DC, Kind of network: 3-wire; 4-wire; single-phase; three-phase, Interface: RS485, Input current: 1A; 5A, Input voltage: 57.7...230V, Display resolution: 320x240, Operating frequency: 45...65Hz, Related items: ATS-100, Type of meter: network parameters, Communictions protocol: BACnet/IP, Manufacturer series: ND30BAC, Measurement: AC current; active power; AC voltage; apparent power; energy; frequency; harmonics; power factor; reactive power; THD, Kind of meter: digital; mounting, Dimensions (W x H x D): 96x96x77mm, Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer, Mounting: for DIN rail mounting (optional); on panel, Anzahl je Verpackung: 1 Stücke.
