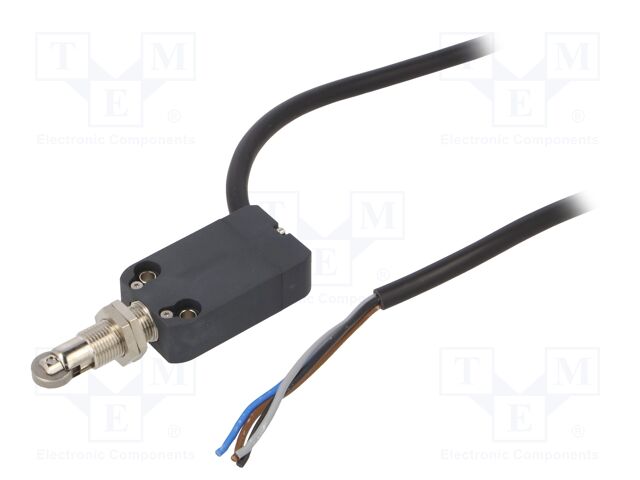

NF B110FB-DN2 PIZZATO ELETTRICA
Hersteller: PIZZATO ELETTRICA
Category: Limit Switches
Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead 2m; IP67
Operating temperature: -25...80°C
Body material: plastic
Mounting holes pitch: 20mm
Number of mounting holes: 2
Body dimensions: 39x30x16mm
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switches features: snap action contacts
Switched voltage: max. 250V AC; max. 250V DC
Contact current max.: 10A
Switching frequency max: 1Hz
Output configuration: NO + NC
Connection: lead 2m
Kind of actuator: oblong metal roller Ø12mm and additional fixation
Type of sensor: limit switch
IP rating: IP67
Anzahl je Verpackung: 1 Stücke
Category: Limit Switches
Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead 2m; IP67
Operating temperature: -25...80°C
Body material: plastic
Mounting holes pitch: 20mm
Number of mounting holes: 2
Body dimensions: 39x30x16mm
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switches features: snap action contacts
Switched voltage: max. 250V AC; max. 250V DC
Contact current max.: 10A
Switching frequency max: 1Hz
Output configuration: NO + NC
Connection: lead 2m
Kind of actuator: oblong metal roller Ø12mm and additional fixation
Type of sensor: limit switch
IP rating: IP67
Anzahl je Verpackung: 1 Stücke
auf Bestellung 19 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 28.21 EUR |
5+ | 28.2 EUR |
10+ | 27.84 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NF B110FB-DN2 PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead 2m; IP67, Operating temperature: -25...80°C, Body material: plastic, Mounting holes pitch: 20mm, Number of mounting holes: 2, Body dimensions: 39x30x16mm, AC contacts rating @R: 4A / 250V AC, DC contacts rating @R: 0.3A / 250V DC, Switches features: snap action contacts, Switched voltage: max. 250V AC; max. 250V DC, Contact current max.: 10A, Switching frequency max: 1Hz, Output configuration: NO + NC, Connection: lead 2m, Kind of actuator: oblong metal roller Ø12mm and additional fixation, Type of sensor: limit switch, IP rating: IP67, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NF B110FB-DN2 nach Preis ab 27.84 EUR bis 28.21 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NF B110FB-DN2 | Hersteller : PIZZATO ELETTRICA |
Category: Limit Switches Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead 2m; IP67 Operating temperature: -25...80°C Body material: plastic Mounting holes pitch: 20mm Number of mounting holes: 2 Body dimensions: 39x30x16mm AC contacts rating @R: 4A / 250V AC DC contacts rating @R: 0.3A / 250V DC Switches features: snap action contacts Switched voltage: max. 250V AC; max. 250V DC Contact current max.: 10A Switching frequency max: 1Hz Output configuration: NO + NC Connection: lead 2m Kind of actuator: oblong metal roller Ø12mm and additional fixation Type of sensor: limit switch IP rating: IP67 |
auf Bestellung 19 Stücke: Lieferzeit 14-21 Tag (e) |
|
