P 1190

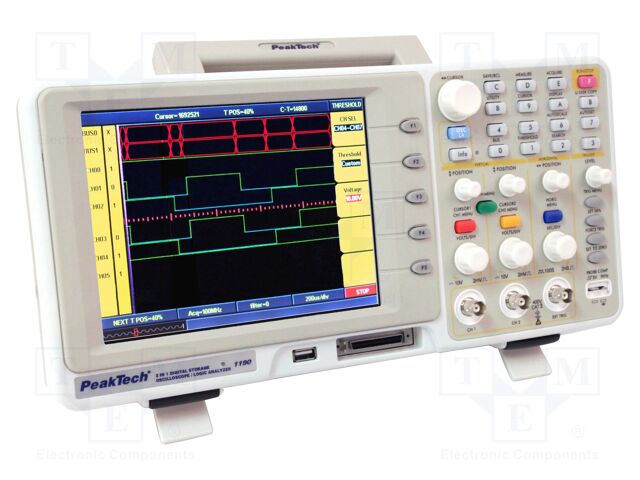

P 1190 PEAKTECH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDABCCDD75810A8A0C7&compId=P%201190.pdf?ci_sign=6ac4fc6188d474b87479b50bf388c9bb50065740 Hersteller: PEAKTECH
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 100MHz; 500Msps; 2Mpts/ch; LCD TFT 8"
Number of channels: 2
Supply voltage: 100...240V AC
Power consumption: 18W
Body dimensions: 370x180x120mm
Interface: USB
Display resolution: 640x480
Input impedance: 1MΩ/15pF
Standard equipment: BNC cable x2; case; logic probe; mains cable; oscilloscope probe x2; USB cable; user's manual
Measuring instrument features: 16 logic input channels; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT
Sampling: 500Msps
Type of oscilloscope: digital
Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 400V
Band: 100MHz
Rise time: ≤3.5ns
Input sensitivity: 2mV/div...10V/div
Time base: 5n...100s/div
Software: included
Memory record length: 2Mpts/ch
Connectors for the country: Europe
Operating temperature: 0...40°C
Kind of display used: LCD TFT 8"
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
