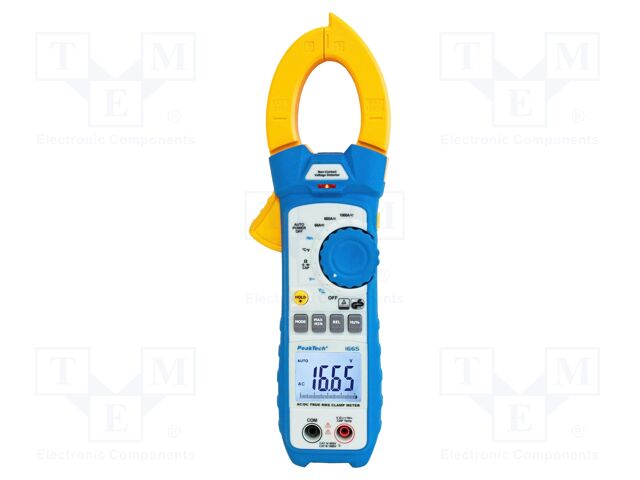

P 1665 PEAKTECH

Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; Øcable: 48mm; LCD, Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function; low battery indicator, Battery/ rechargeable battery: battery 6LR61 9V x1, Power supply: battery 6LR61 9V x1, Type of meter: multifunction, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Kind of meter: digital; pincers type, Kind of display used: LCD, True effective value measurement: True RMS, Temperature measuring range: -20...760°C, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF, DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, AC current measuring range: 60A; 600A; 1kA, DC current measuring range: 60A; 600A; 1kA, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Frequency measuring range: 0...10MHz, Diode test: 1mA @3V, Max. diameter of measured cable: 48mm, Frequency measuring accuracy: ±(1%+5 digit), DC voltage measuring accuracy: ±(1.5% + 3 digit), Dimensions: 76x230x40mm, Temperature measurement accuracy: ±(3% + 5 digit), Resistance measuring accuracy: ±(1.5%+2 digit), DC current measuring accuracy: ±(2.5% + 8 digit), AC voltage measuring accuracy: ±(1.5% + 5 digit), AC current measuring accuracy: ±(2.5% + 8 digit), Capacitance measuring accuracy: ±(3%+ 5 digit), Sampling: 3x/s, Display parameters: 3,83 digit (6000), Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature, Continuity test: acoustic indication; .
