PACT RCP-4000A-1A-D190-10M PHOENIX CONTACT
Hersteller: PHOENIX CONTACT
Category: Current Transformers
Description: Transformer: current; Iout: 1A; for DIN rail mounting; 1.25VA
Type of Transformer: current
Output current: 1A
Mounting: for DIN rail mounting
Power: 1.25VA
Frequency: 45...65Hz
IP rating: IP20
Cable length: 10m
Dimensions (a x b x c): 22.5x85x70.4mm
Operating temperature: -20...70°C
Conform to the norm: CAT III 1000V; CAT IV 600V
Current rating: 0...100A; 0...250A; 0...400A; 0...630A; 0...1kA; 0...1.5kA; 0...2kA; 0...4kA
Supply voltage: 19.2...30V DC
Probe length: 600mm

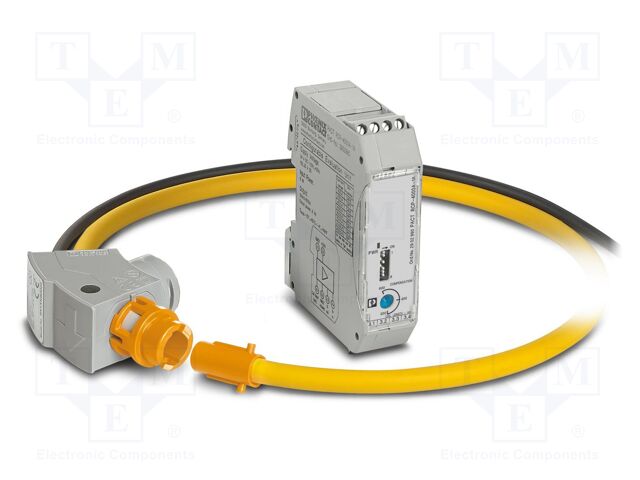

Kit contents: Rogowski coil PH-2910324; transformer for Rogowski coil
Category: Current Transformers
Description: Transformer: current; Iout: 1A; for DIN rail mounting; 1.25VA
Type of Transformer: current
Output current: 1A
Mounting: for DIN rail mounting
Power: 1.25VA
Frequency: 45...65Hz
IP rating: IP20
Cable length: 10m
Dimensions (a x b x c): 22.5x85x70.4mm
Operating temperature: -20...70°C
Conform to the norm: CAT III 1000V; CAT IV 600V
Current rating: 0...100A; 0...250A; 0...400A; 0...630A; 0...1kA; 0...1.5kA; 0...2kA; 0...4kA
Supply voltage: 19.2...30V DC
Probe length: 600mm
Kit contents: Rogowski coil PH-2910324; transformer for Rogowski coil
