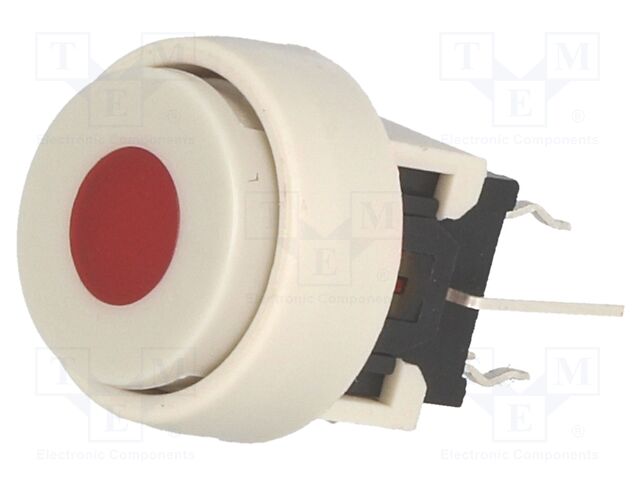

PB6136AL-1 HIGHLY ELECTRIC
Hersteller: HIGHLY ELECTRICCategory: Keypad Switches
Description: Switch: keypad; Pos: 2; DPDT; 0.1A/30VDC; white; LED; red; THT; 1.5N
Operating temperature: -10...80°C
Type of switch: keypad
Contacts configuration: DPDT
DC contacts rating @R: 0.1A / 30V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 1.5N
Illumination: LED
Actuator colour: white
Backlight colour: red
Button shape: round
Button height: 12.5mm
Manufacturer series: PB613
Number of positions: 2
Mounting: THT
Max. contact resistance:: 50mΩ
Min. insulation resistance: 0.1GΩ
Terminal pitch: 2.54x5.08mm
Body dimensions: Ø12.5mm
Leads: for PCB; straight
Electrical life: 10000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 47 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 38+ | 1.89 EUR |
| 45+ | 1.6 EUR |
| 47+ | 1.52 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PB6136AL-1 HIGHLY ELECTRIC
Category: Keypad Switches, Description: Switch: keypad; Pos: 2; DPDT; 0.1A/30VDC; white; LED; red; THT; 1.5N, Operating temperature: -10...80°C, Type of switch: keypad, Contacts configuration: DPDT, DC contacts rating @R: 0.1A / 30V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 1.5N, Illumination: LED, Actuator colour: white, Backlight colour: red, Button shape: round, Button height: 12.5mm, Manufacturer series: PB613, Number of positions: 2, Mounting: THT, Max. contact resistance:: 50mΩ, Min. insulation resistance: 0.1GΩ, Terminal pitch: 2.54x5.08mm, Body dimensions: Ø12.5mm, Leads: for PCB; straight, Electrical life: 10000 cycles, Anzahl je Verpackung: 1 Stücke.
