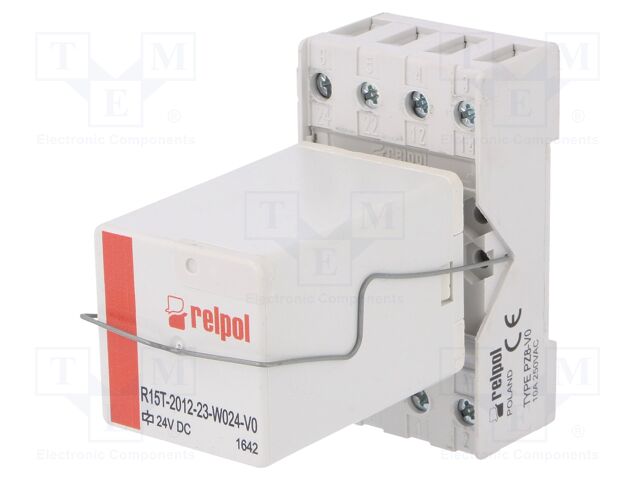

PIR152T-024DC-V0 RELPOL
Hersteller: RELPOL
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VDC; 10A; 10A/250VAC; 10A/24VDC
Type of relay: interface
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V AC; max. 250V DC
Relay variant: Relay set
Mounting: for DIN rail mounting
Relay series: PIR152T
Operating temperature: -40...55°C
Body dimensions: 38x68.2x82mm
Operate time: 18ms
Release time: 7ms
Contact resistance: 100mΩ
Contact material: AgNi
Leads: screw terminals
Switching capacity: 2.5kVA
Max. operating current: 10A
OEM number: 862541
Conform to the norm: EN 50155
Application: railway industry
Kit contents: ejector; holder; R15T relay
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VDC; 10A; 10A/250VAC; 10A/24VDC
Type of relay: interface
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V AC; max. 250V DC
Relay variant: Relay set
Mounting: for DIN rail mounting
Relay series: PIR152T
Operating temperature: -40...55°C
Body dimensions: 38x68.2x82mm
Operate time: 18ms
Release time: 7ms
Contact resistance: 100mΩ
Contact material: AgNi
Leads: screw terminals
Switching capacity: 2.5kVA
Max. operating current: 10A
OEM number: 862541
Conform to the norm: EN 50155
Application: railway industry
Kit contents: ejector; holder; R15T relay
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
