Produkte > AUTONICS > PRFDA30-12DP-V
PRFDA30-12DP-V

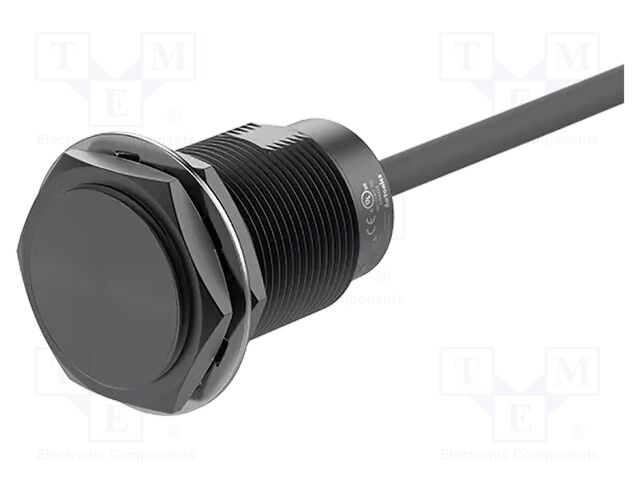

PRFDA30-12DP-V AUTONICS

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF9AF0438779A600D6&compId=PRFD_DC3-wire_EN-DTE.pdf?ci_sign=fc2ef3d2eedfdc07f204e9f8b11415b4d859334a pVersion=0046&contRep=ZT&docId=005056AB281E1EDF9AF04A9F15D780D6&compId=PRFD_DC3-wire_EN-INS.pdf?ci_sign=8b9dd7293529bace42666b59efb258dceb016c06 Hersteller: AUTONICS
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO; 12mm; 10÷30VDC; M30; IP66; 100mA
Type of sensor: inductive
Output configuration: PNP / NO
Range: 12mm
Supply voltage: 10...30V DC
Switch housing: M30
Connection: cables
IP rating: IP66
Max. operating current: 0.1A
Operating temperature: -25...70°C
Kind of forehead: embedded
Body material: PTFE
Switching frequency max: 50Hz
Overall length: 54mm
Number of pins: 4
Resistance to: spatter
Manufacturer series: PRFD
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PRFDA30-12DP-V AUTONICS

Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO; 12mm; 10÷30VDC; M30; IP66; 100mA, Type of sensor: inductive, Output configuration: PNP / NO, Range: 12mm, Supply voltage: 10...30V DC, Switch housing: M30, Connection: cables, IP rating: IP66, Max. operating current: 0.1A, Operating temperature: -25...70°C, Kind of forehead: embedded, Body material: PTFE, Switching frequency max: 50Hz, Overall length: 54mm, Number of pins: 4, Resistance to: spatter, Manufacturer series: PRFD.
