Produkte > BREVE TUFVASSONS > PTM320/230/110V
PTM320/230/110V

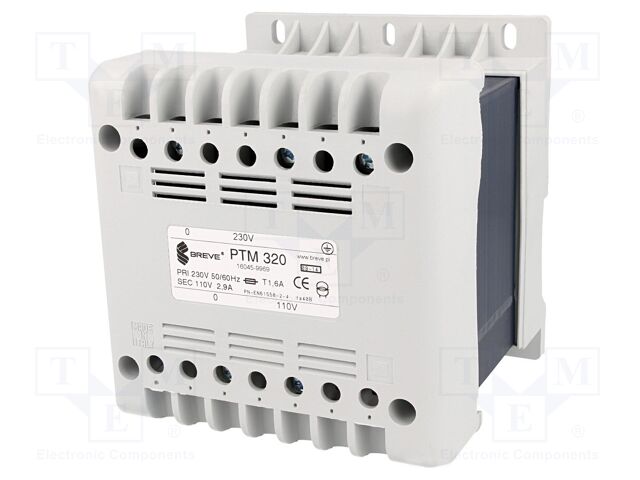

PTM320/230/110V BREVE TUFVASSONS


pVersion=0046&contRep=ZT&docId=005056AB752F1EE4AFD1FD4CE070A469&compId=PTM-EN.pdf?ci_sign=fcc100999c376ee265f83ff698bad4f5587b73df pVersion=0046&contRep=ZT&docId=005056AB752F1EE4AFD1FD4CE0704469&compId=PTM-DE.pdf?ci_sign=8dd3c1e8e39aafe059810c6803b955a6efb8b56c Hersteller: BREVE TUFVASSONS
Category: Transformers with Fastening
Description: Transformer: mains; 320VA; 230VAC; 110V; Leads: terminal block
Conform to the norm: PN EN 61558-2-4; PN EN 61558-2-6
IP rating: IP21
Power: 320VA
Leads: terminal block
Insulation class: B
A dimension: 126mm
Body dimensions: 126x136x127mm
H dimension: 127mm
Type of transformer: mains
Primary voltage: 230V AC
Secondary voltage 1: 110V
Thermal class: Ta40B
B dimension: 136mm
C dimension: 96mm
D dimension: 121mm
Mounting: for DIN rail mounting
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+158.94 EUR
10+152.84 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PTM320/230/110V BREVE TUFVASSONS

Category: Transformers with Fastening, Description: Transformer: mains; 320VA; 230VAC; 110V; Leads: terminal block, Conform to the norm: PN EN 61558-2-4; PN EN 61558-2-6, IP rating: IP21, Power: 320VA, Leads: terminal block, Insulation class: B, A dimension: 126mm, Body dimensions: 126x136x127mm, H dimension: 127mm, Type of transformer: mains, Primary voltage: 230V AC, Secondary voltage 1: 110V, Thermal class: Ta40B, B dimension: 136mm, C dimension: 96mm, D dimension: 121mm, Mounting: for DIN rail mounting, Anzahl je Verpackung: 1 Stücke.
