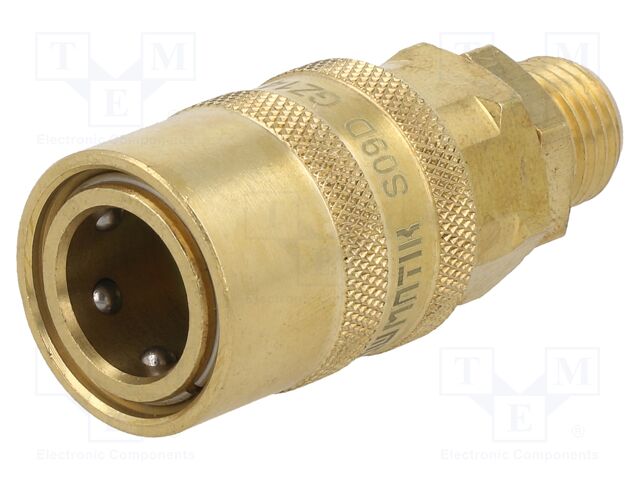

S09D GZ38 PNEUMAT
Hersteller: PNEUMAT
Category: Connectors and tubing
Description: Quick connection coupling; straight; max.15bar; brass; Seal: FPM
Operating temperature: -5...180°C
Application: for injection molds
Seal material: FPM
Operating pressure: max. 15bar
D1 dimension: 13mm
D2 dimension: 23mm
SW dimension: 19mm
L1 dimension: 9mm
L dimension: 59mm
External thread: BSP 3/8"
Splice terminal variant: straight
Body material: brass
Type of pneumatic accessories: quick connection coupling
Anzahl je Verpackung: 1 Stücke
Category: Connectors and tubing
Description: Quick connection coupling; straight; max.15bar; brass; Seal: FPM
Operating temperature: -5...180°C
Application: for injection molds
Seal material: FPM
Operating pressure: max. 15bar
D1 dimension: 13mm
D2 dimension: 23mm
SW dimension: 19mm
L1 dimension: 9mm
L dimension: 59mm
External thread: BSP 3/8"
Splice terminal variant: straight
Body material: brass
Type of pneumatic accessories: quick connection coupling
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details S09D GZ38 PNEUMAT
Category: Connectors and tubing, Description: Quick connection coupling; straight; max.15bar; brass; Seal: FPM, Operating temperature: -5...180°C, Application: for injection molds, Seal material: FPM, Operating pressure: max. 15bar, D1 dimension: 13mm, D2 dimension: 23mm, SW dimension: 19mm, L1 dimension: 9mm, L dimension: 59mm, External thread: BSP 3/8", Splice terminal variant: straight, Body material: brass, Type of pneumatic accessories: quick connection coupling, Anzahl je Verpackung: 1 Stücke.
