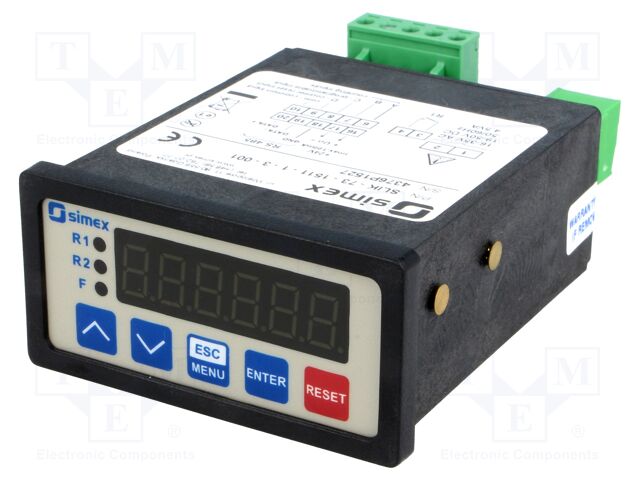

SLIK-73-1511-1-3-001 SIMEX

Category: Impulse Counters, Description: Counter: electronical; LED; pulses; -99999÷999999; supply; IP65, IP rating: IP65, Supply voltage: 16...35V AC; 19...50V DC, Operating temperature: 0...50°C, Kind of output 2: SPST-NO, Resetting method: electrical; locking possibility; manual, Electrical connection: screw terminals, Display height 1: 9mm, Electrical input 1 parameters: high level: 10...30V; low level: 0...3V, Electrical input 2 parameters: high level: 10...30V; low level: 0...1V, Mounting hole diameter: 66.5x32.5mm, Counting range: -99999...999999, Kind of counter: progressive/reversing; with access lock, Kind of input 3: programmable, Output 2 electrical parameters: 250V AC / 1A, Output 1 electrical parameters: 24V DC / 100mA, Mounting: on panel, Body dimensions: 72x36x92mm, Type of counted signal: pulses, Type of counter: electronical, Kind of display used: LED, Kind of input 1: contact; voltage, Max IN1 counting frequency: 10kHz, Kind of input 2: contact; voltage, IN2 max counting frequency: 10kHz, Kind of output 1: supply, Anzahl je Verpackung: 1 Stücke.
