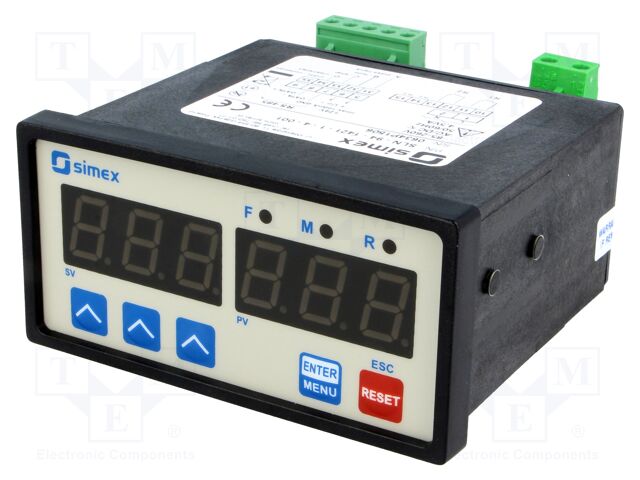

SLN-94-1421-1-4 SIMEX

Category: Impulse Counters, Description: Counter: electronical; LED x2; pulses; 999; supply; IP65; 85÷260VDC, Operating temperature: 0...50°C, Kind of input 1: contact; NPN; PNP, Resetting method: electrical; locking possibility; manual, Type of counter: electronical, Mounting: on panel, Electrical input 1 parameters: high level: 10...30V; low level: 0...1V, IP rating: IP65, Kind of display used: LED x2, Kind of counter: progressive/reversing; with EEPROM memory; with preset value, Type of counted signal: pulses, The additional control inputs: RESET; START; STOP, Electrical connection: screw terminals, Kind of output 2: SPST-NO, Kind of output 3: SPST-NO, Kind of output 1: supply, Display 2 height: 13mm, Display height 1: 13mm, Mounting hole diameter: 90.5x43mm, Body dimensions: 96x48x92mm, Supply voltage: 85...260V AC; 85...260V DC, Output 1 electrical parameters: 24V DC / 100mA, Output 3 electrical parameters: 250V AC / 1A, Output 2 electrical parameters: 250V AC / 1A, Max IN1 counting frequency: 10kHz, Counting range: 999, Anzahl je Verpackung: 1 Stücke.
