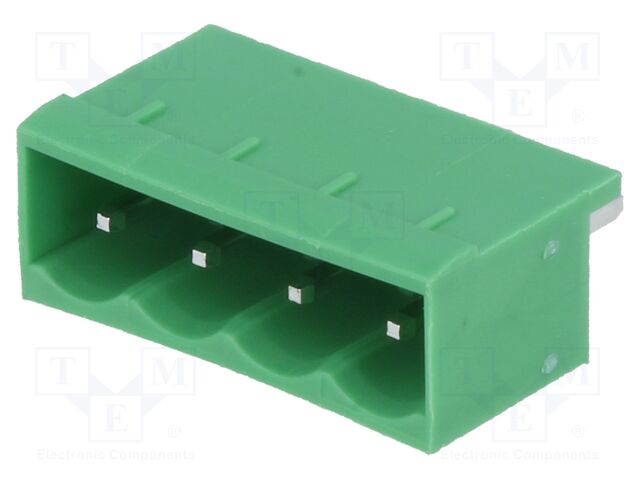

TBG-5-PW-4P/GN NINIGI
Hersteller: NINIGI
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straight
Operating temperature: -40...105°C
Connector: socket
Spatial orientation: straight
Contact plating: tinned
Locking system: for latch
Contacts pitch: 5.08mm
Height: 11.9mm
Flammability rating: UL94V-0
Current rating: 15A
Connector pinout layout: 1x4
Rated voltage: 300V
Type of connector: pluggable terminal block
Contact material: brass
Depth: 8mm
Soldering temperature: 250°C / 5 s
Number of ways: 4
Number of pins: 4
Electrical mounting: THT
Mechanical mounting: on PCBs
Colour: green
Body material: polyamide
Kind of connector: male
Anzahl je Verpackung: 1 Stücke
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 4; straight
Operating temperature: -40...105°C
Connector: socket
Spatial orientation: straight
Contact plating: tinned
Locking system: for latch
Contacts pitch: 5.08mm
Height: 11.9mm
Flammability rating: UL94V-0
Current rating: 15A
Connector pinout layout: 1x4
Rated voltage: 300V
Type of connector: pluggable terminal block
Contact material: brass
Depth: 8mm
Soldering temperature: 250°C / 5 s
Number of ways: 4
Number of pins: 4
Electrical mounting: THT
Mechanical mounting: on PCBs
Colour: green
Body material: polyamide
Kind of connector: male
Anzahl je Verpackung: 1 Stücke
auf Bestellung 291 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 108+ | 0.67 EUR |
| 135+ | 0.53 EUR |
| 291+ | 0.24 EUR |
| 500+ | 0.21 EUR |
