Produkte > BREVE TUFVASSONS > TMM400/A230/24V

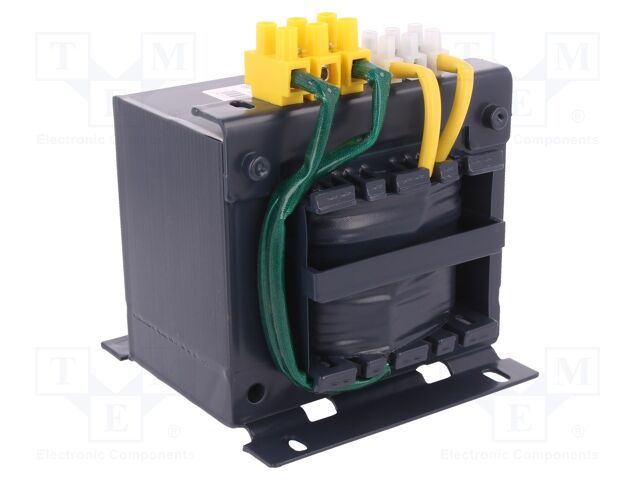

TMM400/A230/24V BREVE TUFVASSONS

Name: TMM400/A230/24V
Brand: BREVE TUFVASSONS
SKU: 22203968-8
Price: 75 EUR
Availability: InStock

pVersion=0046&contRep=ZT&docId=005056AB752F1ED490E4FA3215D641EC&compId=TMM-EN.pdf?ci_sign=72fa6a1a9120f607bf10022cd16bc550ed8830ac

pVersion=0046&contRep=ZT&docId=005056AB752F1ED490E4FA3215D5E1EC&compId=TMM-DE.pdf?ci_sign=45f153e6c56fd3d038595af09bcbd25e3c09d899

Hersteller: BREVE TUFVASSONS
Category: Transformers with Fastening
Description: Transformer: mains; 400VA; 230VAC; 24V; Leads: terminal block; IP00
Type of transformer: mains
Power: 400VA
Primary voltage: 230V AC
Secondary voltage 1: 24V
Leads: terminal block
Mounting: screw type
IP rating: IP00
Thermal class: Ta130B
Conform to the norm: PN EN 61558-2-1; PN EN 61558-2-6
A dimension: 120mm
B dimension: 120mm
C dimension: 143mm
D dimension: 90mm
E dimension: 102mm
Body dimensions: 120x143x120mm
Electrical insulation strength: 4kV/60s
Version: single-phase
Manufacturer series: TMM

auf Bestellung 1 Stücke:

Lieferzeit 14-21 Tag (e)

Anzahl	Preis
1+	75 EUR

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details TMM400/A230/24V BREVE TUFVASSONS

Category: Transformers with Fastening, Description: Transformer: mains; 400VA; 230VAC; 24V; Leads: terminal block; IP00, Type of transformer: mains, Power: 400VA, Primary voltage: 230V AC, Secondary voltage 1: 24V, Leads: terminal block, Mounting: screw type, IP rating: IP00, Thermal class: Ta130B, Conform to the norm: PN EN 61558-2-1; PN EN 61558-2-6, A dimension: 120mm, B dimension: 120mm, C dimension: 143mm, D dimension: 90mm, E dimension: 102mm, Body dimensions: 120x143x120mm, Electrical insulation strength: 4kV/60s, Version: single-phase, Manufacturer series: TMM.
