Produkte > INDEL > TSZZ18/002M

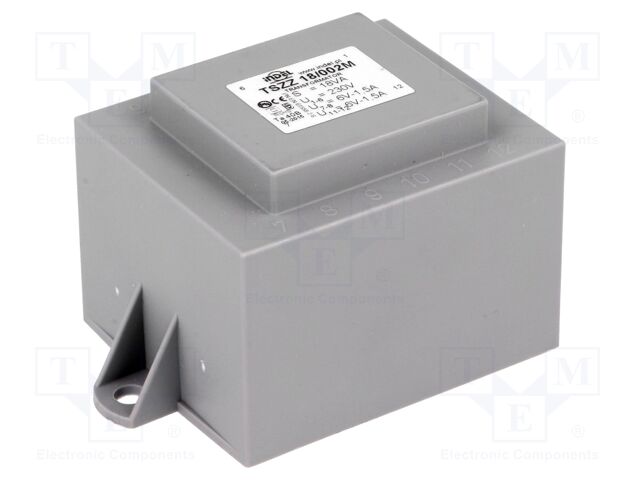

TSZZ18/002M INDEL

Name: TSZZ18/002M
Brand: INDEL
SKU: 20161395-8
Price: 71.52 EUR
Availability: InStock

pVersion=0046&contRep=ZT&docId=005056AB281E1EDD919658C2B652C0D3&compId=TSZZ18.pdf?ci_sign=bc29171a5994137654b494b0ede45213ad68687a

Hersteller: INDEL
Category: PCB transformers
Description: Transformer: encapsulated; 18VA; 230VAC; 6V; 6V; 1.5A; 1.5A; PCB
IP rating: IP00
Power: 18VA
Insulation class: II
A dimension: 52mm
Conform to the norm: PN EN 61558
Type of transformer: encapsulated
Primary voltage: 230V AC
Primary winding terminals: 1-6
Secondary voltage 1: 6V
Secondary voltage 2: 6V
Secondary winding terminals: 7-8, 11-12
Secondary winding current 1: 1.5A
Thermal class: Ta40B
A1 dimension: 35.6mm
B1 dimension: 34.6mm
C1 dimension: 35mm
P dimension: 5mm
M dimension: 27.5mm
Secondary winding current 2: 1.5A
B dimension: 44mm
C dimension: 41.5mm
Electrical insulation strength: 4kV/60s
Mounting: PCB

auf Bestellung 3 Stücke:

Lieferzeit 14-21 Tag (e)

Anzahl	Preis
3+	23.84 EUR

Mindestbestellmenge: 3

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details TSZZ18/002M INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 18VA; 230VAC; 6V; 6V; 1.5A; 1.5A; PCB, IP rating: IP00, Power: 18VA, Insulation class: II, A dimension: 52mm, Conform to the norm: PN EN 61558, Type of transformer: encapsulated, Primary voltage: 230V AC, Primary winding terminals: 1-6, Secondary voltage 1: 6V, Secondary voltage 2: 6V, Secondary winding terminals: 7-8, 11-12, Secondary winding current 1: 1.5A, Thermal class: Ta40B, A1 dimension: 35.6mm, B1 dimension: 34.6mm, C1 dimension: 35mm, P dimension: 5mm, M dimension: 27.5mm, Secondary winding current 2: 1.5A, B dimension: 44mm, C dimension: 41.5mm, Electrical insulation strength: 4kV/60s, Mounting: PCB.
