TSZZ2/015MP

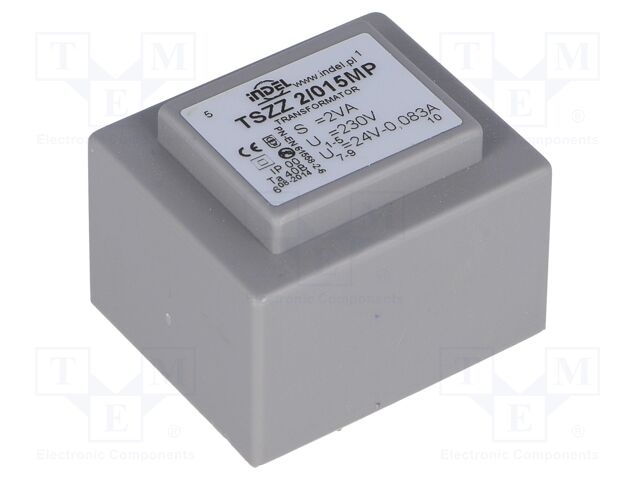

TSZZ2/015MP INDEL

pVersion=0046&contRep=ZT&docId=005056AB752F1EE384ACB32A8CC7ACAD&compId=30_8-12.pdf?ci_sign=d6ac677273ad59af955857d79f69b99b25d55d62 Hersteller: INDEL
Category: PCB transformers
Description: Transformer: encapsulated; 2VA; 230VAC; 24V; 80mA; PCB; IP00
Mounting: PCB
Power: 2VA
Insulation class: II
A dimension: 32.1mm
Conform to the norm: PN EN 61558
Type of transformer: encapsulated
Primary voltage: 230V AC
Primary winding terminals: 1-5
Secondary voltage 1: 24V
Secondary winding terminals: 7-9
Secondary winding current 1: 80mA
Thermal class: Ta40B
A1 dimension: 23.6mm
B1 dimension: 20.2mm
C1 dimension: 20.2mm
P dimension: 5.05mm
M dimension: 20mm
B dimension: 27.1mm
C dimension: 23.8mm
Electrical insulation strength: 4kV/60s
IP rating: IP00
auf Bestellung 138 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
17+4.42 EUR
19+3.88 EUR
20+3.68 EUR
25+3.66 EUR
100+3.59 EUR
Mindestbestellmenge: 17
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TSZZ2/015MP INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 2VA; 230VAC; 24V; 80mA; PCB; IP00, Mounting: PCB, Power: 2VA, Insulation class: II, A dimension: 32.1mm, Conform to the norm: PN EN 61558, Type of transformer: encapsulated, Primary voltage: 230V AC, Primary winding terminals: 1-5, Secondary voltage 1: 24V, Secondary winding terminals: 7-9, Secondary winding current 1: 80mA, Thermal class: Ta40B, A1 dimension: 23.6mm, B1 dimension: 20.2mm, C1 dimension: 20.2mm, P dimension: 5.05mm, M dimension: 20mm, B dimension: 27.1mm, C dimension: 23.8mm, Electrical insulation strength: 4kV/60s, IP rating: IP00.
