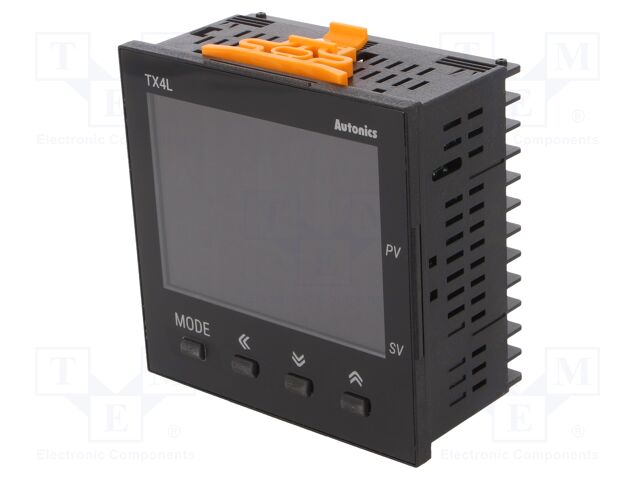

TX4L-14C AUTONICS



Category: Temperature Regulators
Description: Module: regulator; temperature; analogue,SSR; OUT 2: alarm; TX4L
Type of module: regulator
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T
Controlled parameter: temperature
Kind of output 1: analogue; SSR
Kind of output 2: alarm
Regulation for output 1: ON-OFF; P; PD; PI; PID
Mounting: on panel
Manufacturer series: TX4L
Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA
Output 2 electrical parameters: 250V AC / 3A
Operating temperature: -10...50°C
Supply voltage: 100...240V AC
The programming method: foil keypad
Body dimensions: 96x96x51mm
Mounting hole diameter: 92x92mm
IP rating: IP50
Input 1 properties: RTD; thermocouple
Kind of display used: LCD
Display height 1: 26.8mm
Display 2 height: 17.8mm
Controlled parameter range: -1999...9999
