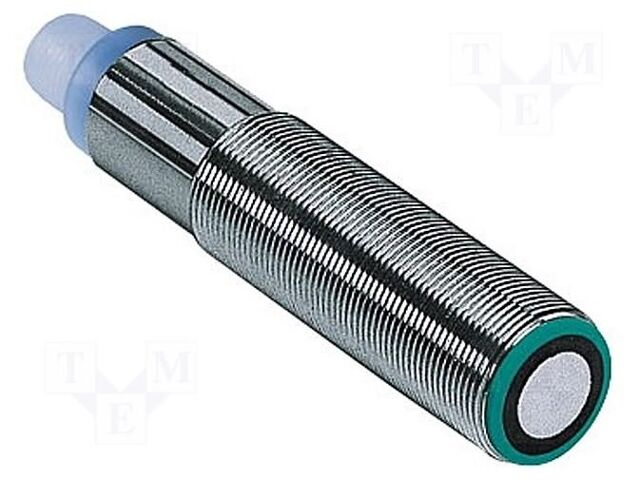

UB1000-18GM75-E6-V15 PEPPERL+FUCHS

pVersion=0046&contRep=ZT&docId=E1C04414C914A5F1A6F5005056AB5A8F&compId=204531.pdf?ci_sign=a99aac7b369d586dacb68eca7779cb0db8a5d76d

Hersteller: PEPPERL+FUCHS
Category: Ultrasonic Sensors
Description: Sensor: ultrasonic; straight; Range: 70÷1000mm; NPN / NO / NC
Number of pins: 5
Operating temperature: -25...70°C
IP rating: IP65
Supply voltage: 10...30V DC
Body material: brass
Max. operating current: 200mA
Plating material: nickel
Switching frequency max: 40Hz
Switch housing: M18
Range: 70...1000mm
Output configuration: NPN / NO / NC
Connection: M12 male
Additional functions: Teach-in
Kind of sensor: straight
Type of sensor: ultrasonic

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details UB1000-18GM75-E6-V15 PEPPERL+FUCHS

Category: Ultrasonic Sensors, Description: Sensor: ultrasonic; straight; Range: 70÷1000mm; NPN / NO / NC, Number of pins: 5, Operating temperature: -25...70°C, IP rating: IP65, Supply voltage: 10...30V DC, Body material: brass, Max. operating current: 200mA, Plating material: nickel, Switching frequency max: 40Hz, Switch housing: M18, Range: 70...1000mm, Output configuration: NPN / NO / NC, Connection: M12 male, Additional functions: Teach-in, Kind of sensor: straight, Type of sensor: ultrasonic.
