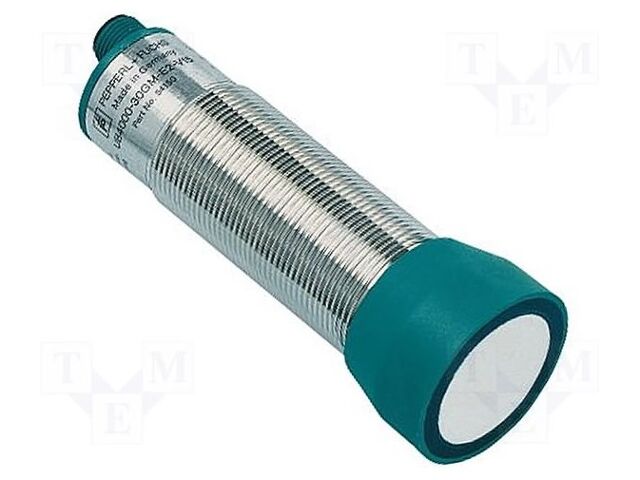

UB4000-30GM-E4-V15

UB4000-30GM-E4-V15 PEPPERL+FUCHS

097970.pdf Hersteller: PEPPERL+FUCHS
Category: Ultrasonic Sensors
Description: Sensor: ultrasonic; straight; Range: 200÷4000mm; NPN / NO / NC
Operating temperature: -25...70°C
IP rating: IP65
Supply voltage: 10...30V DC
Body material: brass
Number of pins: 5
Body plating: nickel
Max. operating current: 200mA
Switching frequency max: 13Hz
Switch housing: M30
Range: 200mm...4m
Output configuration: NPN / NO / NC
Connection: connector M12
Additional functions: Teach-in
Kind of sensor: straight
Type of sensor: ultrasonic
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details UB4000-30GM-E4-V15 PEPPERL+FUCHS

Category: Ultrasonic Sensors, Description: Sensor: ultrasonic; straight; Range: 200÷4000mm; NPN / NO / NC, Operating temperature: -25...70°C, IP rating: IP65, Supply voltage: 10...30V DC, Body material: brass, Number of pins: 5, Body plating: nickel, Max. operating current: 200mA, Switching frequency max: 13Hz, Switch housing: M30, Range: 200mm...4m, Output configuration: NPN / NO / NC, Connection: connector M12, Additional functions: Teach-in, Kind of sensor: straight, Type of sensor: ultrasonic.
