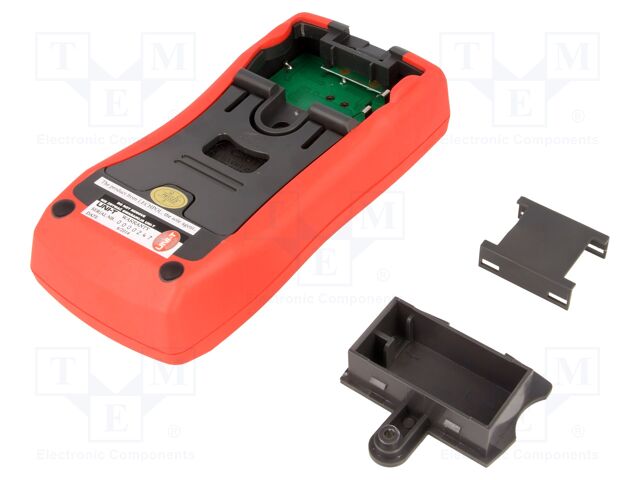

UT60E UNI-T

pVersion=0046&contRep=ZT&docId=005056AB752F1EE693E24174308C8FA8&compId=ut60e_en.pdf?ci_sign=fe45e5281e89c338dbc399a0884034903f8168b6

Hersteller: UNI-T
Category: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (3999); VAC: 1mV÷4V,40V,400V,750V
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; resistance; temperature
Kind of display used: LCD
DC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.8% + 1 digit)
AC voltage measuring range: 1mV...4V; 40V; 400V; 750V
AC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring range: 0.1...400µA; 4mA; 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(1.2% + 3 digit)
AC current measuring range: 0.1...400µA; 4mA; 40mA; 400mA; 4A; 10A
AC current measuring accuracy: ±(2% + 5 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 10pF...40nF; 400nF; 4µF; 40µF; 100µF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 10...10MHz
Frequency measuring accuracy: ±(0.1%+3 digit)
Temperature measuring range: -40...1000°C
Resistance measuring accuracy: ±(1%+2 digit)
Test: diodes
Power supply: battery 6F22 9V x1

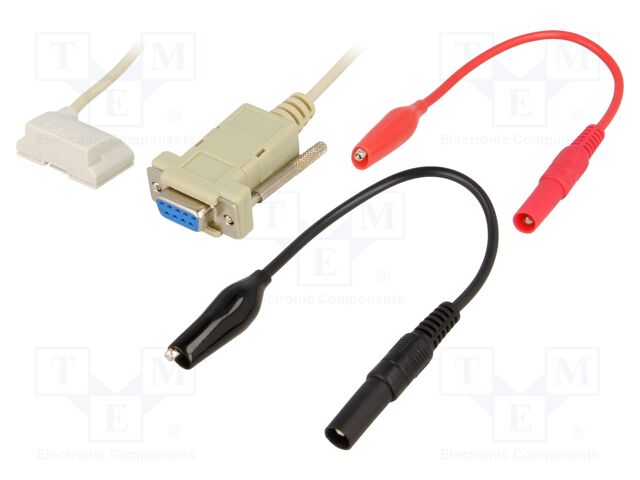

Standard equipment: drop-like K-type probe; RS232 cable; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Weight with battery: 320g
Continuity test: acoustic indication; <70Ω
Measuring instrument features: auto and manual ranging; HOLD function; impact resistant holster; low battery indicator
Interface: RS232
True effective value measurement: True RMS
Operating temperature: 0...40°C
Body dimensions: 85x40x177mm
Duty cycle factor: 0.1...99.9%
Temperature measurement resolution: 1°C
Temperature measurement accuracy: ±(1% + 3 digit)
Bandwidth for AC current measurements: 40...400Hz
Bandwidth for AC voltage measurements: 40...400Hz
Display parameters: (3999)
