Produkte > SUNON > EE40101S1-1000U-999

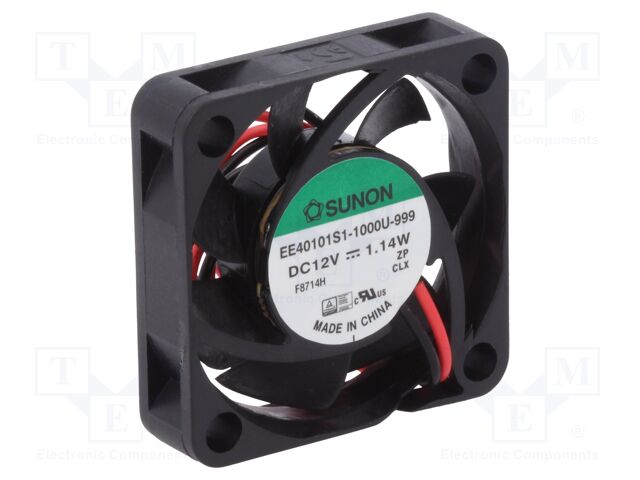

EE40101S1-1000U-999

EE40101S1-1000U-999 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285E8537ED2B820&compId=EE40101S1-999-A.pdf?ci_sign=6b688797dccaea474a0d17bf78f03752aecb2781 Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.87m3/h; 28.8dBA; slide; 26AWG
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: slide
Fan efficiency: 13.87m3/h
Static pressure: 4.83mm H2O
Noise level: 28.8dBA
Rotational rate/speed: 7300rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.14W
Wire size: 26AWG
Related items: SR4-15.5
Lead length: 0.3m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 82mA
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 40x40x10mm
Fan motor: brushless DC
auf Bestellung 1429 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
27+2.73 EUR
50+2.06 EUR
100+1.84 EUR
200+1.76 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details EE40101S1-1000U-999 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.87m3/h; 28.8dBA; slide; 26AWG, Operating temperature: -10...70°C, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: slide, Fan efficiency: 13.87m3/h, Static pressure: 4.83mm H2O, Noise level: 28.8dBA, Rotational rate/speed: 7300rpm, Current and power consumption tolerance: ±15%, Power consumption: 1.14W, Wire size: 26AWG, Related items: SR4-15.5, Lead length: 0.3m, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 82mA, Supply voltage: 12V DC, Leads: leads x2, Operating voltage: 4.5...13.8V DC, Type of fan: DC, Fan dimensions: 40x40x10mm, Fan motor: brushless DC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote EE40101S1-1000U-999 nach Preis ab 1.76 EUR bis 7.08 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
EE40101S1-1000U-999 EE40101S1-1000U-999 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285E8537ED2B820&compId=EE40101S1-999-A.pdf?ci_sign=6b688797dccaea474a0d17bf78f03752aecb2781 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.87m3/h; 28.8dBA; slide; 26AWG
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: slide
Fan efficiency: 13.87m3/h
Static pressure: 4.83mm H2O
Noise level: 28.8dBA
Rotational rate/speed: 7300rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.14W
Wire size: 26AWG
Related items: SR4-15.5
Lead length: 0.3m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 82mA
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 40x40x10mm
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1429 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
27+2.73 EUR
50+2.06 EUR
100+1.84 EUR
200+1.76 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
EE40101S1-1000U-999 EE40101S1-1000U-999 Hersteller : Sunon Fans (D04121350G-01)-1.pdf Description: FAN AXIAL 40X10MM 12VDC WIRE
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Sleeve
RPM: 7300 RPM
Air Flow: 8.2 CFM (0.230m³/min)
Width: 10.00mm
Weight: 0.036 lb (16.33 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 28.2dB(A)
Static Pressure: 0.190 in H2O (47.3 Pa)
Part Status: Active
Power (Watts): 990 mW
auf Bestellung 1123 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.08 EUR
10+5.89 EUR
25+5.42 EUR
50+5.08 EUR
100+4.75 EUR
400+4.53 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
EE40101S1-1000U-999 Hersteller : Sunon (D04121350G-01)-1.pdf DC Brushless Fan Blower
auf Bestellung 1622 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
35+4.23 EUR
50+3.08 EUR
100+2.65 EUR
200+2.44 EUR
Mindestbestellmenge: 35
Im Einkaufswagen  Stück im Wert von  UAH
EE40101S1-1000U-999 Hersteller : Sunon (D04121350G-01)-1.pdf DC Brushless Fan Blower
auf Bestellung 180 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
30+6.59 EUR
60+6.19 EUR
120+5.72 EUR
Mindestbestellmenge: 30
Im Einkaufswagen  Stück im Wert von  UAH
Вентилятор 40x40x10, 12V, (EE40101S1-999-A) Вентилятор 40x40x10, 12V, (EE40101S1-999-A)
Produktcode: 153483
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 40x40x10 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 13,87 м³/год.
Leistung, Watt: 1,14 Вт
Lärm, dB: 28,8 дБ
Rotationsgeschwindigkeit, r/min: 7300 об/хв
Beschreibung: Підшипник ковзання "втулка"
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
EE40101S1-1000U-999 EE40101S1-1000U-999 Hersteller : Sunon (D04121350G-01)-1.pdf DC Fans Axial Fan, 40x40x10mm, 12VDC, 8.2CFM, 0.99W, 28.2dBA, 0.19"H2O, Sleeve, Wire
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
