VSFK 8500 / SIL1 / 100 / GE

VSFK 8500 / SIL1 / 100 / GE SCHÜTZINGER


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBABB05EE46624C0C7&compId=VSFK_8500_SIL_1.pdf?ci_sign=9a22c478a51e18557a22806c8dff421cc51fe1af Hersteller: SCHÜTZINGER
Category: Single Test Leads

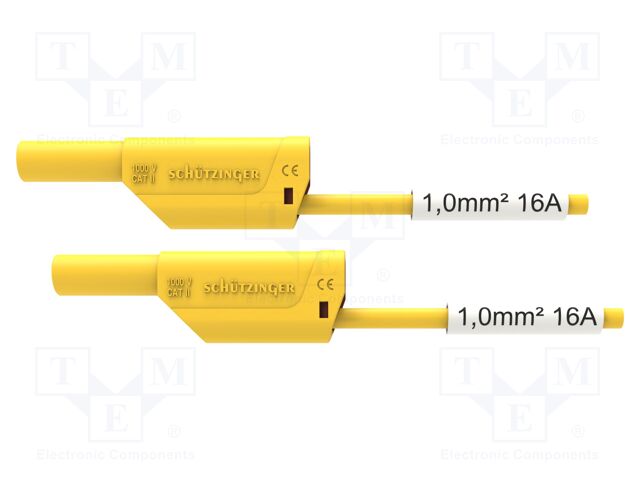

Description: Test lead; 16A; banana plug 4mm,both sides; Urated: 1kV; Len: 1m
Colour: yellow
Operating temperature: -10...90°C
Connector variant: insulated; with 4mm axial socket
Conform to the norm: CAT III 1000V; EN 61010
Wire cross-section: 1mm2
Cable length: 1m
Wire insulation material: silicone
Type of test accessories: test lead
Test lead configuration: banana plug 4mm; both sides
Contact plating: nickel plated
Rated voltage: 1kV
Max. contact resistance:: 17mΩ
Current rating: 16A
