Produkte > SCHÜTZINGER > VSFK 8701 / 2.5 / 100 / RT
VSFK 8701 / 2.5 / 100 / RT

VSFK 8701 / 2.5 / 100 / RT SCHÜTZINGER


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBABB05FACAEC9A0C7&compId=VSFK_8701_2.5.pdf?ci_sign=7047ab40c1a7026b908b7c7f7292aa9b37b1d1e6 Hersteller: SCHÜTZINGER
Category: Single Test Leads

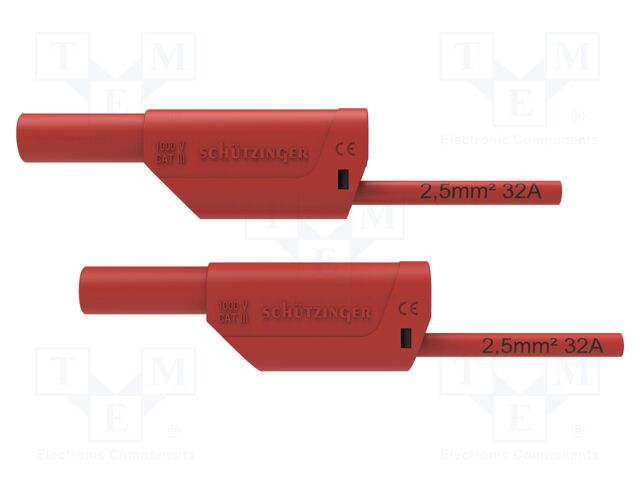

Description: Test lead; 32A; banana plug 4mm,both sides; Urated: 1kV; Len: 1m
Type of test accessories: test lead
Current rating: 32A
Test lead configuration: banana plug 4mm; both sides
Connector variant: insulated; with 4mm axial socket
Rated voltage: 1kV
Cable length: 1m
Colour: red
Wire cross-section: 2.5mm2
Conform to the norm: CAT III 1000V; EN 61010
Operating temperature: -10...70°C
Max. contact resistance:: 14mΩ
Contact plating: gold-plated
Wire insulation material: PVC
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details VSFK 8701 / 2.5 / 100 / RT SCHÜTZINGER

Category: Single Test Leads, Description: Test lead; 32A; banana plug 4mm,both sides; Urated: 1kV; Len: 1m, Type of test accessories: test lead, Current rating: 32A, Test lead configuration: banana plug 4mm; both sides, Connector variant: insulated; with 4mm axial socket, Rated voltage: 1kV, Cable length: 1m, Colour: red, Wire cross-section: 2.5mm2, Conform to the norm: CAT III 1000V; EN 61010, Operating temperature: -10...70°C, Max. contact resistance:: 14mΩ, Contact plating: gold-plated, Wire insulation material: PVC.
