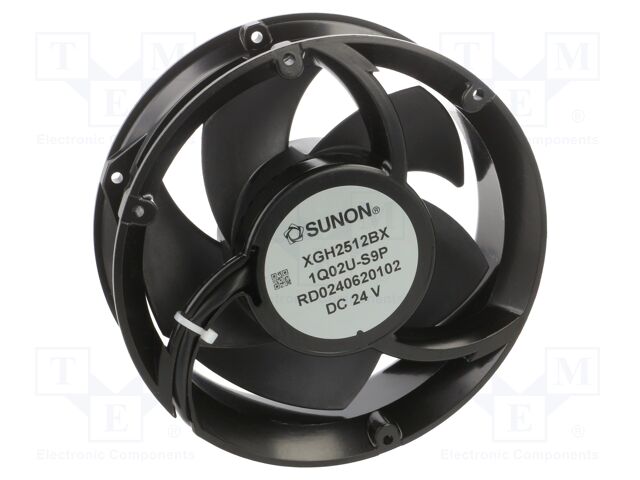

XGH2512BX-10000-S99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; Ø172x51mm; 907.2m3/h; 78.8dBA; ball; 10000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 22...27.6V DC
Fan dimensions: Ø172x51mm
Power consumption: 168W
Current rating: 7A
Fan efficiency: 907.2m3/h
Noise level: 78.8dBA
Kind of Bearing: ball
Signal output: PWM; R type
Rotational rate/speed: 10000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x4
Lead length: 0.31m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: PWM
Anzahl je Verpackung: 1 Stücke
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; Ø172x51mm; 907.2m3/h; 78.8dBA; ball; 10000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 22...27.6V DC
Fan dimensions: Ø172x51mm
Power consumption: 168W
Current rating: 7A
Fan efficiency: 907.2m3/h
Noise level: 78.8dBA
Kind of Bearing: ball
Signal output: PWM; R type
Rotational rate/speed: 10000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x4
Lead length: 0.31m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: PWM
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 154.44 EUR |
| 5+ | 148 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details XGH2512BX-10000-S99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; Ø172x51mm; 907.2m3/h; 78.8dBA; ball; 10000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 22...27.6V DC, Fan dimensions: Ø172x51mm, Power consumption: 168W, Current rating: 7A, Fan efficiency: 907.2m3/h, Noise level: 78.8dBA, Kind of Bearing: ball, Signal output: PWM; R type, Rotational rate/speed: 10000rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x4, Lead length: 0.31m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: PWM, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote XGH2512BX-10000-S99 nach Preis ab 148 EUR bis 154.44 EUR
