7-2213767-9 7-2213767-9 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1-2213767-3 1-2213767-3 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP67; green
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-2
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910E612R04 AV1910E612R04 TE Connectivity 1-2213767-4.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

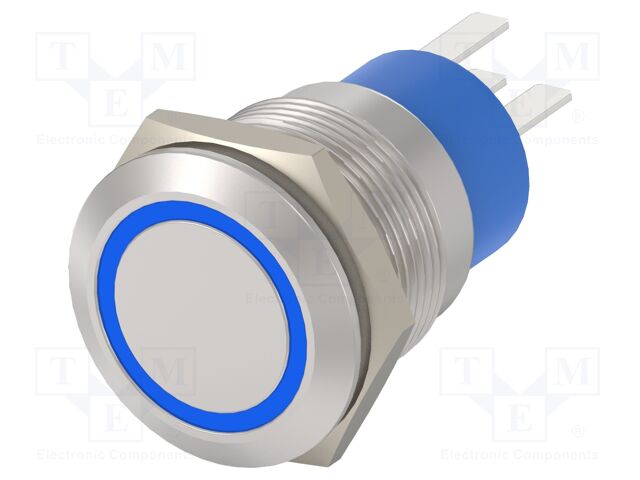

1-2213767-9 1-2213767-9 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP67; blue
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-2
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2213767-5 2-2213767-5 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; ON-OFF
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-OFF
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2213767-7 2-2213767-7 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; ON-OFF
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-OFF
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
3-2213767-9 3-2213767-9 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
4-2213767-3 4-2213767-3 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: white
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E312R04 AV1920E312R04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: red
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E524Q04 AV1920E524Q04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: yellow
Illumination voltage: 24V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E612R04 AV1920E612R04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
6-2213767-7 6-2213767-7 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

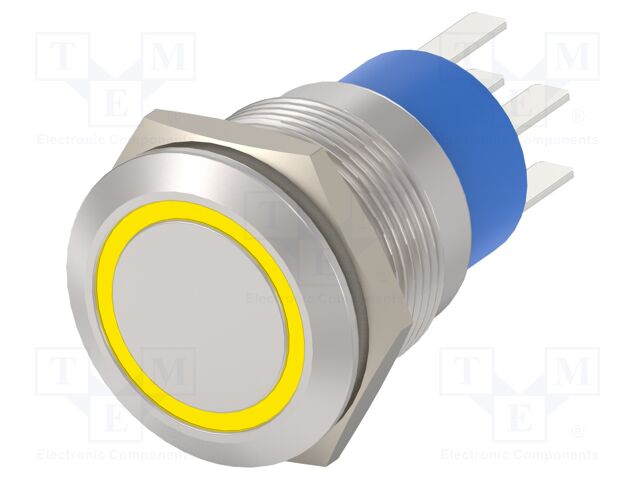

AV1921E512Q04 AV1921E512Q04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-ON
Illumination: LED
Backlight colour: yellow
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1921E524Q04 AV1921E524Q04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-ON
Illumination: LED
Backlight colour: yellow
Illumination voltage: 24V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
7-2213767-7 7-2213767-7 TE Connectivity Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
5-1879221-1 5-1879221-1 TE Connectivity CPF-series.pdf Category: SMD resistors
Description: Resistor: thin film; SMD; 0603; 4.99Ω; 62.5mW; ±0.1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 62.5mW
Tolerance: ±0.1%
Operating temperature: -55...155°C
Temperature coefficient: 25ppm/°C
Case - mm: 1608
Case - inch: 0603
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
3-1879334-9 3-1879334-9 TE Connectivity CPF-series.pdf Category: SMD resistors
Description: Resistor: thin film; SMD; 0603; 4.99Ω; 62.5mW; ±1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 62.5mW
Tolerance: ±1%
Operating temperature: -55...155°C
Temperature coefficient: 50ppm/°C
Case - mm: 1608
Case - inch: 0603
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
9-1614889-6 9-1614889-6 TE Connectivity CPF-series.pdf Category: SMD resistors
Description: Resistor: thin film; SMD; 0805; 4.99Ω; 100mW; ±0.1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 0.1W
Tolerance: ±0.1%
Operating temperature: -55...155°C
Temperature coefficient: 25ppm/°C
Case - mm: 2012
Case - inch: 0805
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2176326-8 2-2176326-8 TE Connectivity CRGP.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1.8kΩ; 250mW; ±1%; CRGP
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 1.8kΩ
Power: 0.25W
Tolerance: ±1%
Manufacturer series: CRGP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
28SSA473MKF20N TE Connectivity DDEController?Action=srchrtrv&DocNm=1773115&DocType=DS&DocLang=English Category: Potentiometers - Unclassified
Description: 28SSA473MKF20N
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
20+5.65 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
48753-1 TE Connectivity 48753-1.pdf Category: Crimping Tools - Others
Description: Crimping jaws; 6AWG
Type of spare part: crimping jaws
Wire size: 6AWG
Related items: 59974-1; 69051
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
48754-1 TE Connectivity DDEController?Action=srchrtrv&DocNm=2365082-1&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=48754-1 Category: Dedicated Crimping Tools
Description: Crimping jaws; PLASTI-GRIP; terminals; 21mm2
Type of spare part: crimping jaws
Crimp tool application: terminals
Wire cross-section: 21mm2
Related items: 59974-1; 69051
Manufacturer series: PLASTI-GRIP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
48752-1 48752-1 TE Connectivity 48752-1.pdf Category: Crimping Tools - Others
Description: Crimping jaws; 8AWG
Type of spare part: crimping jaws
Wire size: 8AWG
Related items: 59974-1; 69051
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1-659976-1 TE Connectivity Category: Automotive connectors
Description: 1-659976-1
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+1828.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
812724-SF TE Connectivity Category: IEC 60320 connectors
Description: Connector: AC supply; module; male; 10A; side; FN9282; IP40
Manufacturer series: FN9282
Kind of connector: male
Design: filter; on/off switch
Mechanical mounting: for panel mounting
IP rating: IP40
Connector: module
Current rating: 10A
Type of connector: AC supply
Connector variant: side
auf Bestellung 30 Stücke:
Lieferzeit 14-21 Tag (e)
3+43.2 EUR
13+38.15 EUR
26+37.44 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
D42180-000 D42180-000 TE Connectivity ENG_CD_B-155-XX_2.pdf Category: Bootlace ferrule and butt splice
Description: Tip: solder sleeve; soldering; for cable; RAYCHEM
Mechanical mounting: for cable
Manufacturer series: RAYCHEM
Alias: B-155-05
Type of tip: solder sleeve
Electrical mounting: soldering
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
40+1.79 EUR
Mindestbestellmenge: 40
Im Einkaufswagen  Stück im Wert von  UAH
EM-SG-PG16-MET-C EM-SG-PG16-MET-C TE Connectivity 11-strona.pdf ENTRELEC CATALOGUE.pdf Category: Glands
Description: Cable gland; without nut; PG16; IP68; brass; Entrelec
Plating material: nickel
Body material: brass
Type of cable accessories: cable gland
IP rating: IP68
Gland thread: PG16
Kind of thread: PG
Cable gland version: without nut
Thread length: 6.5mm
Cable external diameter: 10...14mm
Manufacturer series: Entrelec
auf Bestellung 268 Stücke:
Lieferzeit 14-21 Tag (e)
26+2.8 EUR
27+2.66 EUR
29+2.52 EUR
100+2.37 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
10214513-00 TE Connectivity Category: Pressure Transducers
Description: Converter: pressure; 0.25%; IP67; -40÷125°C
Type of converter: pressure
Measurement accuracy: 0.25%
IP rating: IP67
Operating temperature: -40...125°C
Additional functions: temperature compensated
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
1+449.56 EUR
2+397.11 EUR
3+389.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH

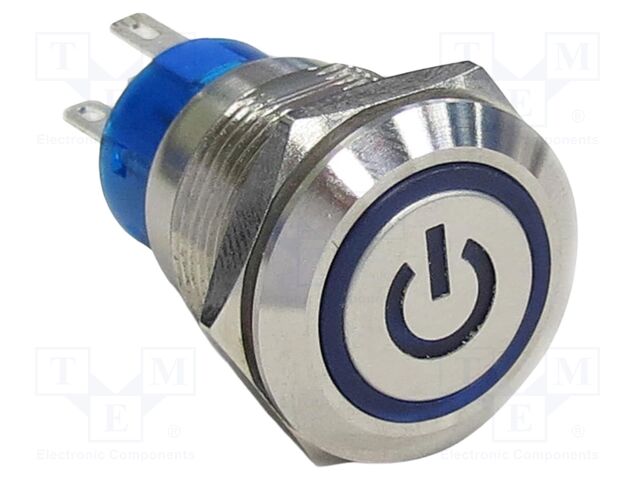

AV1910P512Q04 AV1910P512Q04 TE Connectivity 2213766-9.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910PG12Q04 AV1910PG12Q04 TE Connectivity 2316366-5.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: red/yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910P512R04 AV1910P512R04 TE Connectivity 2213766-9.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; IP67; OFF-(ON); Illumin: LED
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910P524Q04 AV1910P524Q04 TE Connectivity 1-2213766-1.pdf Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 24V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2176345-9 2176345-9 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 47Ω; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 47Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 2120 Stücke:
Lieferzeit 14-21 Tag (e)
420+0.17 EUR
1390+0.052 EUR
1500+0.048 EUR
1590+0.045 EUR
Mindestbestellmenge: 420
Im Einkaufswagen  Stück im Wert von  UAH
2176345-3 2176345-3 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 15Ω; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 15Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 530 Stücke:
Lieferzeit 14-21 Tag (e)
370+0.2 EUR
530+0.13 EUR
Mindestbestellmenge: 370
Im Einkaufswagen  Stück im Wert von  UAH
2176346-7 2176346-7 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 10Ω; 500mW; ±5%; CRGCQ
Power: 0.5W
Resistance: 10Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 390 Stücke:
Lieferzeit 14-21 Tag (e)
390+0.19 EUR
Mindestbestellmenge: 390
Im Einkaufswagen  Stück im Wert von  UAH
2176341-7 2176341-7 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 33Ω; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 33Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
40+1.79 EUR
Mindestbestellmenge: 40
Im Einkaufswagen  Stück im Wert von  UAH
2176342-6 2176342-6 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 6.8Ω; 125mW; ±5%; CRGCQ
Power: 0.125W
Resistance: 6.8Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 19900 Stücke:
Lieferzeit 14-21 Tag (e)
585+0.12 EUR
3271+0.022 EUR
4665+0.015 EUR
5383+0.013 EUR
6444+0.011 EUR
7353+0.0097 EUR
8362+0.0086 EUR
11087+0.0064 EUR
12377+0.0058 EUR
Mindestbestellmenge: 585
Im Einkaufswagen  Stück im Wert von  UAH
2176342-1 2176342-1 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 1Ω; 125mW; ±5%; CRGCQ
Power: 0.125W
Resistance: 1Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 9100 Stücke:
Lieferzeit 14-21 Tag (e)
3200+0.023 EUR
4000+0.018 EUR
6400+0.011 EUR
9100+0.0079 EUR
Mindestbestellmenge: 3200
Im Einkaufswagen  Stück im Wert von  UAH
2176340-1 2176340-1 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1Ω; 100mW; ±5%; CRGCQ
Power: 0.1W
Resistance: 1Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 1608
auf Bestellung 7600 Stücke:
Lieferzeit 14-21 Tag (e)
5600+0.013 EUR
6600+0.011 EUR
7600+0.0094 EUR
Mindestbestellmenge: 5600
Im Einkaufswagen  Stück im Wert von  UAH
2176340-3 2176340-3 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 2.2Ω; 100mW; ±5%; CRGCQ
Power: 0.1W
Resistance: 2.2Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 1608
auf Bestellung 2500 Stücke:
Lieferzeit 14-21 Tag (e)
2500+0.029 EUR
Mindestbestellmenge: 2500
Im Einkaufswagen  Stück im Wert von  UAH
2176343-9 2176343-9 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1206; 47Ω; 250mW; ±1%; CRGCQ
Power: 0.25W
Resistance: 47Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1206
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3216
auf Bestellung 3800 Stücke:
Lieferzeit 14-21 Tag (e)
2000+0.036 EUR
2600+0.028 EUR
3800+0.019 EUR
Mindestbestellmenge: 2000
Im Einkaufswagen  Stück im Wert von  UAH
3-2176345-3 3-2176345-3 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 4.7kΩ; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 4.7kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 2620 Stücke:
Lieferzeit 14-21 Tag (e)
640+0.11 EUR
1590+0.045 EUR
1820+0.039 EUR
2000+0.036 EUR
Mindestbestellmenge: 640
Im Einkaufswagen  Stück im Wert von  UAH
3-2176341-9 3-2176341-9 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 15kΩ; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 15kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 8875 Stücke:
Lieferzeit 14-21 Tag (e)
591+0.12 EUR
2580+0.028 EUR
3557+0.02 EUR
4059+0.018 EUR
5507+0.013 EUR
6258+0.011 EUR
8376+0.0085 EUR
Mindestbestellmenge: 591
Im Einkaufswagen  Stück im Wert von  UAH
4-2176341-3 4-2176341-3 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 33kΩ; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 33kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 14828 Stücke:
Lieferzeit 14-21 Tag (e)
591+0.12 EUR
2462+0.029 EUR
3372+0.021 EUR
3829+0.019 EUR
5236+0.014 EUR
6427+0.011 EUR
8788+0.0081 EUR
11087+0.0064 EUR
Mindestbestellmenge: 591
Im Einkaufswagen  Stück im Wert von  UAH
4-2176340-2 4-2176340-2 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 6.8MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 6.8MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 19000 Stücke:
Lieferzeit 14-21 Tag (e)
7200+0.01 EUR
8600+0.0084 EUR
13100+0.0055 EUR
19000+0.0037 EUR
Mindestbestellmenge: 7200
Im Einkaufswagen  Stück im Wert von  UAH
1-2176342-1 1-2176342-1 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 47Ω; 125mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Case - mm: 2012
Resistance: 47Ω
Power: 0.125W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 19872 Stücke:
Lieferzeit 14-21 Tag (e)
747+0.096 EUR
3372+0.021 EUR
4827+0.015 EUR
5556+0.013 EUR
6632+0.011 EUR
8475+0.0084 EUR
10846+0.0066 EUR
11962+0.006 EUR
Mindestbestellmenge: 747
Im Einkaufswagen  Stück im Wert von  UAH
3-2176347-7 3-2176347-7 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 2010; 10kΩ; 750mW; ±1%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 2010
Case - mm: 5025
Resistance: 10kΩ
Power: 0.75W
Tolerance: ±1%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 807 Stücke:
Lieferzeit 14-21 Tag (e)
271+0.26 EUR
622+0.11 EUR
799+0.09 EUR
807+0.089 EUR
Mindestbestellmenge: 271
Im Einkaufswagen  Stück im Wert von  UAH
4-2176340-3 4-2176340-3 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 10MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 10MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 15880 Stücke:
Lieferzeit 14-21 Tag (e)
595+0.12 EUR
3925+0.018 EUR
5383+0.013 EUR
6227+0.011 EUR
7657+0.0093 EUR
9108+0.0079 EUR
11038+0.0065 EUR
13737+0.0052 EUR
15880+0.0044 EUR
Mindestbestellmenge: 595
Im Einkaufswagen  Stück im Wert von  UAH
4-2176344-1 4-2176344-1 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1206; 4.7MΩ; 250mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 1206
Case - mm: 3216
Resistance: 4.7MΩ
Power: 0.25W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 800 Stücke:
Lieferzeit 14-21 Tag (e)
800+0.089 EUR
Mindestbestellmenge: 800
Im Einkaufswagen  Stück im Wert von  UAH
2-2176340-9 2-2176340-9 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 47kΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 47kΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 13190 Stücke:
Lieferzeit 14-21 Tag (e)
600+0.12 EUR
4991+0.014 EUR
6403+0.011 EUR
7154+0.01 EUR
8320+0.0086 EUR
9417+0.0076 EUR
10730+0.0067 EUR
13190+0.0054 EUR
Mindestbestellmenge: 600
Im Einkaufswagen  Stück im Wert von  UAH
4-2176345-5 4-2176345-5 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 47kΩ; 500mW; ±1%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Case - mm: 3225
Resistance: 47kΩ
Power: 0.5W
Tolerance: ±1%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 3190 Stücke:
Lieferzeit 14-21 Tag (e)
640+0.11 EUR
1590+0.045 EUR
1770+0.041 EUR
1990+0.036 EUR
2050+0.035 EUR
Mindestbestellmenge: 640
Im Einkaufswagen  Stück im Wert von  UAH
3-2176340-7 3-2176340-7 TE Connectivity CRGCQ.pdf Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 1MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 1950 Stücke:
Lieferzeit 14-21 Tag (e)
649+0.11 EUR
1950+0.037 EUR
Mindestbestellmenge: 649
Im Einkaufswagen  Stück im Wert von  UAH
D-155-0350 TE Connectivity Category: Bootlace ferrule and butt splice
Description: Tip: solder sleeve
Type of tip: solder sleeve
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)
4+28.71 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
B-155-03-20K TE Connectivity Category: Unclassified
Description: B-155-03-20K
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+8085.48 EUR
Im Einkaufswagen  Stück im Wert von  UAH
T4171210004-001 T4171210004-001 TE Connectivity T4171210003.pdf Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; male; 250V; straight; IP67; cables
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: cables
Mechanical mounting: for panel mounting; rear side nut
Polarisation: A code - DeviceNet / CANopen
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 22AWG
Cable length: 0.2m
Operating temperature: -40...85°C
auf Bestellung 183 Stücke:
Lieferzeit 14-21 Tag (e)
8+9.27 EUR
10+7.89 EUR
25+7.62 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
T4111511041-000 T4111511041-000 TE Connectivity t411151041.pdf Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: shielded
Cable external diameter: 4...6mm
auf Bestellung 396 Stücke:
Lieferzeit 14-21 Tag (e)
7+10.64 EUR
10+9.14 EUR
25+8.57 EUR
50+8.28 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
T4171310004-001 T4171310004-001 TE Connectivity T4171310003.pdf Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; female; 250V; straight; IP67; cables
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: female
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: cables
Mechanical mounting: for panel mounting; rear side nut
Polarisation: A code - DeviceNet / CANopen
Locking system: internal thread; threaded joint
Current rating: 4A
Wire size: 22AWG
Cable length: 0.2m
Operating temperature: -40...85°C
auf Bestellung 87 Stücke:
Lieferzeit 14-21 Tag (e)
8+9.19 EUR
9+8.44 EUR
10+7.98 EUR
25+7.36 EUR
30+7.25 EUR
50+7.24 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
T4110511041-000 T4110511041-000 TE Connectivity T4110511041.pdf Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; female; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: female
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: internal thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: shielded
Cable external diameter: 4...6mm
auf Bestellung 86 Stücke:
Lieferzeit 14-21 Tag (e)
7+11.01 EUR
25+10.12 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
T4140012041-000 T4140012041-000 TE Connectivity T4140012031.pdf Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; male; 250V; straight; IP67; THT; 4A
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: THT
Mechanical mounting: for panel mounting; front side nut; on PCBs
Polarisation: A code - DeviceNet / CANopen
Locking system: external thread; threaded joint
Current rating: 4A
Operating temperature: -40...85°C
auf Bestellung 492 Stücke:
Lieferzeit 14-21 Tag (e)
13+5.81 EUR
14+5.43 EUR
25+5.26 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
T4111501041-000 T4111501041-000 TE Connectivity DDEController?&Action=srchrtrv&DocNm=1-1773701-8_M8M12_CONNECTOR_SYSTEM&DocType=CS&DocLang=English&DocFilename=ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_0914.pdf Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: unshielded
Cable external diameter: 4...6mm
auf Bestellung 143 Stücke:
Lieferzeit 14-21 Tag (e)
10+7.54 EUR
11+6.64 EUR
50+5.73 EUR
100+5.09 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
7-2213767-9
7-2213767-9
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1-2213767-3
1-2213767-3
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP67; green
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-2
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910E612R04 1-2213767-4.pdf
AV1910E612R04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1-2213767-9
1-2213767-9
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP67; blue
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-2
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2213767-5
2-2213767-5
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; ON-OFF
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-OFF
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2213767-7
2-2213767-7
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; ON-OFF
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-OFF
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
3-2213767-9
3-2213767-9
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
4-2213767-3
4-2213767-3
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: white
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E312R04 1-2213766-1.pdf
AV1920E312R04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: red
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E524Q04 1-2213766-1.pdf
AV1920E524Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: yellow
Illumination voltage: 24V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1920E612R04 1-2213766-1.pdf
AV1920E612R04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; IP67; OFF-(ON); Illumin: LED
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
6-2213767-7
6-2213767-7
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1921E512Q04 1-2213766-1.pdf
AV1921E512Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-ON
Illumination: LED
Backlight colour: yellow
Illumination voltage: 12V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1921E524Q04 1-2213766-1.pdf
AV1921E524Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; 3A/28VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-ON
Illumination: LED
Backlight colour: yellow
Illumination voltage: 24V
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Operating temperature: -20...55°C
DC contacts rating @R: 3A / 28V DC
Body material: PBT; stainless steel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
7-2213767-7
7-2213767-7
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
5-1879221-1 CPF-series.pdf
5-1879221-1
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thin film; SMD; 0603; 4.99Ω; 62.5mW; ±0.1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 62.5mW
Tolerance: ±0.1%
Operating temperature: -55...155°C
Temperature coefficient: 25ppm/°C
Case - mm: 1608
Case - inch: 0603
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
3-1879334-9 CPF-series.pdf
3-1879334-9
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thin film; SMD; 0603; 4.99Ω; 62.5mW; ±1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 62.5mW
Tolerance: ±1%
Operating temperature: -55...155°C
Temperature coefficient: 50ppm/°C
Case - mm: 1608
Case - inch: 0603
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
9-1614889-6 CPF-series.pdf
9-1614889-6
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thin film; SMD; 0805; 4.99Ω; 100mW; ±0.1%; -55÷155°C
Type of resistor: thin film
Mounting: SMD
Resistance: 4.99Ω
Power: 0.1W
Tolerance: ±0.1%
Operating temperature: -55...155°C
Temperature coefficient: 25ppm/°C
Case - mm: 2012
Case - inch: 0805
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2-2176326-8 CRGP.pdf
2-2176326-8
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1.8kΩ; 250mW; ±1%; CRGP
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 1.8kΩ
Power: 0.25W
Tolerance: ±1%
Manufacturer series: CRGP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
28SSA473MKF20N DDEController?Action=srchrtrv&DocNm=1773115&DocType=DS&DocLang=English
Hersteller: TE Connectivity
Category: Potentiometers - Unclassified
Description: 28SSA473MKF20N
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
20+5.65 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
48753-1 48753-1.pdf
Hersteller: TE Connectivity
Category: Crimping Tools - Others
Description: Crimping jaws; 6AWG
Type of spare part: crimping jaws
Wire size: 6AWG
Related items: 59974-1; 69051
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
48754-1 DDEController?Action=srchrtrv&DocNm=2365082-1&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=48754-1
Hersteller: TE Connectivity
Category: Dedicated Crimping Tools
Description: Crimping jaws; PLASTI-GRIP; terminals; 21mm2
Type of spare part: crimping jaws
Crimp tool application: terminals
Wire cross-section: 21mm2
Related items: 59974-1; 69051
Manufacturer series: PLASTI-GRIP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
48752-1 48752-1.pdf
48752-1
Hersteller: TE Connectivity
Category: Crimping Tools - Others
Description: Crimping jaws; 8AWG
Type of spare part: crimping jaws
Wire size: 8AWG
Related items: 59974-1; 69051
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1-659976-1
Hersteller: TE Connectivity
Category: Automotive connectors
Description: 1-659976-1
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+1828.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
812724-SF
Hersteller: TE Connectivity
Category: IEC 60320 connectors
Description: Connector: AC supply; module; male; 10A; side; FN9282; IP40
Manufacturer series: FN9282
Kind of connector: male
Design: filter; on/off switch
Mechanical mounting: for panel mounting
IP rating: IP40
Connector: module
Current rating: 10A
Type of connector: AC supply
Connector variant: side
auf Bestellung 30 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+43.2 EUR
13+38.15 EUR
26+37.44 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
D42180-000 ENG_CD_B-155-XX_2.pdf
D42180-000
Hersteller: TE Connectivity
Category: Bootlace ferrule and butt splice
Description: Tip: solder sleeve; soldering; for cable; RAYCHEM
Mechanical mounting: for cable
Manufacturer series: RAYCHEM
Alias: B-155-05
Type of tip: solder sleeve
Electrical mounting: soldering
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
40+1.79 EUR
Mindestbestellmenge: 40
Im Einkaufswagen  Stück im Wert von  UAH
EM-SG-PG16-MET-C 11-strona.pdf ENTRELEC CATALOGUE.pdf
EM-SG-PG16-MET-C
Hersteller: TE Connectivity
Category: Glands
Description: Cable gland; without nut; PG16; IP68; brass; Entrelec
Plating material: nickel
Body material: brass
Type of cable accessories: cable gland
IP rating: IP68
Gland thread: PG16
Kind of thread: PG
Cable gland version: without nut
Thread length: 6.5mm
Cable external diameter: 10...14mm
Manufacturer series: Entrelec
auf Bestellung 268 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
26+2.8 EUR
27+2.66 EUR
29+2.52 EUR
100+2.37 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
10214513-00
Hersteller: TE Connectivity
Category: Pressure Transducers
Description: Converter: pressure; 0.25%; IP67; -40÷125°C
Type of converter: pressure
Measurement accuracy: 0.25%
IP rating: IP67
Operating temperature: -40...125°C
Additional functions: temperature compensated
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+449.56 EUR
2+397.11 EUR
3+389.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AV1910P512Q04 2213766-9.pdf
AV1910P512Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910PG12Q04 2316366-5.pdf
AV1910PG12Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: red/yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910P512R04 2213766-9.pdf
AV1910P512R04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; IP67; OFF-(ON); Illumin: LED
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV1910P524Q04 1-2213766-1.pdf
AV1910P524Q04
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; 3A/28VDC; IP67
Leads: connectors
IP rating: IP67
Illumination: LED
Body material: PBT; stainless steel
Contacts configuration: SPST
Switching method: OFF-(ON)
Backlight colour: yellow
Button shape: round
Body colour: silver
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19.2mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 28V DC
Stable positions number: 1
AC contacts rating @R: 3A / 250V AC
Number of positions: 2
Operating Force: 2.5N
Illumination voltage: 24V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
2176345-9 CRGCQ.pdf
2176345-9
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 47Ω; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 47Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 2120 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
420+0.17 EUR
1390+0.052 EUR
1500+0.048 EUR
1590+0.045 EUR
Mindestbestellmenge: 420
Im Einkaufswagen  Stück im Wert von  UAH
2176345-3 CRGCQ.pdf
2176345-3
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 15Ω; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 15Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 530 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
370+0.2 EUR
530+0.13 EUR
Mindestbestellmenge: 370
Im Einkaufswagen  Stück im Wert von  UAH
2176346-7 CRGCQ.pdf
2176346-7
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 10Ω; 500mW; ±5%; CRGCQ
Power: 0.5W
Resistance: 10Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 390 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
390+0.19 EUR
Mindestbestellmenge: 390
Im Einkaufswagen  Stück im Wert von  UAH
2176341-7 CRGCQ.pdf
2176341-7
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 33Ω; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 33Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
40+1.79 EUR
Mindestbestellmenge: 40
Im Einkaufswagen  Stück im Wert von  UAH
2176342-6 CRGCQ.pdf
2176342-6
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 6.8Ω; 125mW; ±5%; CRGCQ
Power: 0.125W
Resistance: 6.8Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 19900 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
585+0.12 EUR
3271+0.022 EUR
4665+0.015 EUR
5383+0.013 EUR
6444+0.011 EUR
7353+0.0097 EUR
8362+0.0086 EUR
11087+0.0064 EUR
12377+0.0058 EUR
Mindestbestellmenge: 585
Im Einkaufswagen  Stück im Wert von  UAH
2176342-1 CRGCQ.pdf
2176342-1
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 1Ω; 125mW; ±5%; CRGCQ
Power: 0.125W
Resistance: 1Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 9100 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3200+0.023 EUR
4000+0.018 EUR
6400+0.011 EUR
9100+0.0079 EUR
Mindestbestellmenge: 3200
Im Einkaufswagen  Stück im Wert von  UAH
2176340-1 CRGCQ.pdf
2176340-1
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1Ω; 100mW; ±5%; CRGCQ
Power: 0.1W
Resistance: 1Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 1608
auf Bestellung 7600 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5600+0.013 EUR
6600+0.011 EUR
7600+0.0094 EUR
Mindestbestellmenge: 5600
Im Einkaufswagen  Stück im Wert von  UAH
2176340-3 CRGCQ.pdf
2176340-3
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 2.2Ω; 100mW; ±5%; CRGCQ
Power: 0.1W
Resistance: 2.2Ω
Tolerance: ±5%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 1608
auf Bestellung 2500 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
2500+0.029 EUR
Mindestbestellmenge: 2500
Im Einkaufswagen  Stück im Wert von  UAH
2176343-9 CRGCQ.pdf
2176343-9
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1206; 47Ω; 250mW; ±1%; CRGCQ
Power: 0.25W
Resistance: 47Ω
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1206
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3216
auf Bestellung 3800 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
2000+0.036 EUR
2600+0.028 EUR
3800+0.019 EUR
Mindestbestellmenge: 2000
Im Einkaufswagen  Stück im Wert von  UAH
3-2176345-3 CRGCQ.pdf
3-2176345-3
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 4.7kΩ; 500mW; ±1%; CRGCQ
Power: 0.5W
Resistance: 4.7kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 3225
auf Bestellung 2620 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
640+0.11 EUR
1590+0.045 EUR
1820+0.039 EUR
2000+0.036 EUR
Mindestbestellmenge: 640
Im Einkaufswagen  Stück im Wert von  UAH
3-2176341-9 CRGCQ.pdf
3-2176341-9
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 15kΩ; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 15kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 8875 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
591+0.12 EUR
2580+0.028 EUR
3557+0.02 EUR
4059+0.018 EUR
5507+0.013 EUR
6258+0.011 EUR
8376+0.0085 EUR
Mindestbestellmenge: 591
Im Einkaufswagen  Stück im Wert von  UAH
4-2176341-3 CRGCQ.pdf
4-2176341-3
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 33kΩ; 125mW; ±1%; CRGCQ
Power: 0.125W
Resistance: 33kΩ
Tolerance: ±1%
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
Case - mm: 2012
auf Bestellung 14828 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
591+0.12 EUR
2462+0.029 EUR
3372+0.021 EUR
3829+0.019 EUR
5236+0.014 EUR
6427+0.011 EUR
8788+0.0081 EUR
11087+0.0064 EUR
Mindestbestellmenge: 591
Im Einkaufswagen  Stück im Wert von  UAH
4-2176340-2 CRGCQ.pdf
4-2176340-2
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 6.8MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 6.8MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 19000 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7200+0.01 EUR
8600+0.0084 EUR
13100+0.0055 EUR
19000+0.0037 EUR
Mindestbestellmenge: 7200
Im Einkaufswagen  Stück im Wert von  UAH
1-2176342-1 CRGCQ.pdf
1-2176342-1
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0805; 47Ω; 125mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0805
Case - mm: 2012
Resistance: 47Ω
Power: 0.125W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 19872 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
747+0.096 EUR
3372+0.021 EUR
4827+0.015 EUR
5556+0.013 EUR
6632+0.011 EUR
8475+0.0084 EUR
10846+0.0066 EUR
11962+0.006 EUR
Mindestbestellmenge: 747
Im Einkaufswagen  Stück im Wert von  UAH
3-2176347-7 CRGCQ.pdf
3-2176347-7
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 2010; 10kΩ; 750mW; ±1%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 2010
Case - mm: 5025
Resistance: 10kΩ
Power: 0.75W
Tolerance: ±1%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 807 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
271+0.26 EUR
622+0.11 EUR
799+0.09 EUR
807+0.089 EUR
Mindestbestellmenge: 271
Im Einkaufswagen  Stück im Wert von  UAH
4-2176340-3 CRGCQ.pdf
4-2176340-3
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 10MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 10MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 15880 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
595+0.12 EUR
3925+0.018 EUR
5383+0.013 EUR
6227+0.011 EUR
7657+0.0093 EUR
9108+0.0079 EUR
11038+0.0065 EUR
13737+0.0052 EUR
15880+0.0044 EUR
Mindestbestellmenge: 595
Im Einkaufswagen  Stück im Wert von  UAH
4-2176344-1 CRGCQ.pdf
4-2176344-1
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1206; 4.7MΩ; 250mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 1206
Case - mm: 3216
Resistance: 4.7MΩ
Power: 0.25W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 800 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
800+0.089 EUR
Mindestbestellmenge: 800
Im Einkaufswagen  Stück im Wert von  UAH
2-2176340-9 CRGCQ.pdf
2-2176340-9
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 47kΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 47kΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 13190 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
600+0.12 EUR
4991+0.014 EUR
6403+0.011 EUR
7154+0.01 EUR
8320+0.0086 EUR
9417+0.0076 EUR
10730+0.0067 EUR
13190+0.0054 EUR
Mindestbestellmenge: 600
Im Einkaufswagen  Stück im Wert von  UAH
4-2176345-5 CRGCQ.pdf
4-2176345-5
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 1210; 47kΩ; 500mW; ±1%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 1210
Case - mm: 3225
Resistance: 47kΩ
Power: 0.5W
Tolerance: ±1%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 3190 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
640+0.11 EUR
1590+0.045 EUR
1770+0.041 EUR
1990+0.036 EUR
2050+0.035 EUR
Mindestbestellmenge: 640
Im Einkaufswagen  Stück im Wert von  UAH
3-2176340-7 CRGCQ.pdf
3-2176340-7
Hersteller: TE Connectivity
Category: SMD resistors
Description: Resistor: thick film; SMD; 0603; 1MΩ; 100mW; ±5%; CRGCQ
Type of resistor: thick film
Mounting: SMD
Case - inch: 0603
Case - mm: 1608
Resistance: 1MΩ
Power: 0.1W
Tolerance: ±5%
Manufacturer series: CRGCQ
Conform to the norm: AEC-Q200
auf Bestellung 1950 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
649+0.11 EUR
1950+0.037 EUR
Mindestbestellmenge: 649
Im Einkaufswagen  Stück im Wert von  UAH
D-155-0350
Hersteller: TE Connectivity
Category: Bootlace ferrule and butt splice
Description: Tip: solder sleeve
Type of tip: solder sleeve
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
4+28.71 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
B-155-03-20K
Hersteller: TE Connectivity
Category: Unclassified
Description: B-155-03-20K
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+8085.48 EUR
Im Einkaufswagen  Stück im Wert von  UAH
T4171210004-001 T4171210003.pdf
T4171210004-001
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; male; 250V; straight; IP67; cables
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: cables
Mechanical mounting: for panel mounting; rear side nut
Polarisation: A code - DeviceNet / CANopen
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 22AWG
Cable length: 0.2m
Operating temperature: -40...85°C
auf Bestellung 183 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+9.27 EUR
10+7.89 EUR
25+7.62 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
T4111511041-000 t411151041.pdf
T4111511041-000
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: shielded
Cable external diameter: 4...6mm
auf Bestellung 396 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7+10.64 EUR
10+9.14 EUR
25+8.57 EUR
50+8.28 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
T4171310004-001 T4171310003.pdf
T4171310004-001
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; female; 250V; straight; IP67; cables
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: female
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: cables
Mechanical mounting: for panel mounting; rear side nut
Polarisation: A code - DeviceNet / CANopen
Locking system: internal thread; threaded joint
Current rating: 4A
Wire size: 22AWG
Cable length: 0.2m
Operating temperature: -40...85°C
auf Bestellung 87 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+9.19 EUR
9+8.44 EUR
10+7.98 EUR
25+7.36 EUR
30+7.25 EUR
50+7.24 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
T4110511041-000 T4110511041.pdf
T4110511041-000
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; female; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: female
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: internal thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: shielded
Cable external diameter: 4...6mm
auf Bestellung 86 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7+11.01 EUR
25+10.12 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
T4140012041-000 T4140012031.pdf
T4140012041-000
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; socket; PIN: 4; male; 250V; straight; IP67; THT; 4A
Type of connector: M12
Connector: socket
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: THT
Mechanical mounting: for panel mounting; front side nut; on PCBs
Polarisation: A code - DeviceNet / CANopen
Locking system: external thread; threaded joint
Current rating: 4A
Operating temperature: -40...85°C
auf Bestellung 492 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
13+5.81 EUR
14+5.43 EUR
25+5.26 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
T4111501041-000 DDEController?&Action=srchrtrv&DocNm=1-1773701-8_M8M12_CONNECTOR_SYSTEM&DocType=CS&DocLang=English&DocFilename=ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_0914.pdf
T4111501041-000
Hersteller: TE Connectivity
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Rated voltage: 0.25kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread; threaded joint
Current rating: 4A
Wire size: 18AWG...24AWG
Operating temperature: -40...85°C
Gland thread: PG7
Connector variant: unshielded
Cable external diameter: 4...6mm
auf Bestellung 143 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
10+7.54 EUR
11+6.64 EUR
50+5.73 EUR
100+5.09 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 966 1932 2898 3864 4830 5796 6762 7728 8694 9660 9661 9662 9663 9664 9665 9666 9667 9668 9669  [ Nächste Seite >> ]
