B7P-VH(LF)(SN) JST Sales America Inc.
Hersteller: JST Sales America Inc.
Description: CONN HEADER VERT 7POS 3.96MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 10A
Mounting Type: Through Hole
Number of Positions: 7
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.156" (3.96mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.146" (3.70mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 1 Wall
Overall Contact Length: 0.575" (14.60mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.303" (7.70mm)
Description: CONN HEADER VERT 7POS 3.96MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 10A
Mounting Type: Through Hole
Number of Positions: 7
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.156" (3.96mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.146" (3.70mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 1 Wall
Overall Contact Length: 0.575" (14.60mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.303" (7.70mm)
auf Bestellung 15008 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
23+ | 0.77 EUR |
26+ | 0.68 EUR |
100+ | 0.56 EUR |
500+ | 0.49 EUR |
1000+ | 0.4 EUR |
5000+ | 0.35 EUR |
10000+ | 0.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details B7P-VH(LF)(SN) JST Sales America Inc.
Description: CONN HEADER VERT 7POS 3.96MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): 10A, Mounting Type: Through Hole, Number of Positions: 7, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.156" (3.96mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.146" (3.70mm), Insulation Height: 0.370" (9.40mm), Shrouding: Shrouded - 1 Wall, Overall Contact Length: 0.575" (14.60mm), Insulation Material: Polyamide (PA66), Nylon 6/6, Contact Length - Mating: 0.303" (7.70mm).
Weitere Produktangebote B7P-VH(LF)(SN) nach Preis ab 0.39 EUR bis 1.59 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

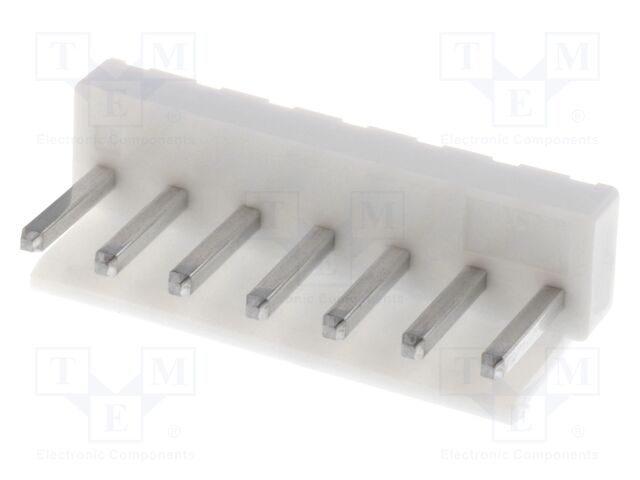

B7P-VH (LF)(SN) | Hersteller : JST |
Category: Raster signal connectors 3,96mm Description: Socket; wire-board; male; VH; 3.96mm; PIN: 7; THT; 250V; 10A; -25÷85°C Connector: socket Type of connector: wire-board Kind of connector: male Connector series: VH Contacts pitch: 3.96mm Number of pins: 7 Electrical mounting: THT Rated voltage: 0.25kV Current rating: 10A Operating temperature: -25...85°C Spatial orientation: vertical Anzahl je Verpackung: 1 Stücke |
auf Bestellung 45 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
B7P-VH (LF)(SN) | Hersteller : JST |
Category: Raster signal connectors 3,96mm Description: Socket; wire-board; male; VH; 3.96mm; PIN: 7; THT; 250V; 10A; -25÷85°C Connector: socket Type of connector: wire-board Kind of connector: male Connector series: VH Contacts pitch: 3.96mm Number of pins: 7 Electrical mounting: THT Rated voltage: 0.25kV Current rating: 10A Operating temperature: -25...85°C Spatial orientation: vertical |
auf Bestellung 45 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
B7P-VH (LF)(SN) | Hersteller : J.S.T. Deutschland GmbH | Conn Wire to Board HDR 7 POS 3.96mm Solder ST Top Entry Thru-Hole Box |
auf Bestellung 7272 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||
B7P-VH (LF)(SN) | Hersteller : JST (JAPAN SOLDERLESS TERMINALS) |
Description: JST (JAPAN SOLDERLESS TERMINALS) - B7P-VH (LF)(SN) - Stiftleiste, Einführung oben, Wire-to-Board, 3.96 mm, 1 Reihe(n), 7 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: Teilweise umhüllt Anzahl der Kontakte: 7Contacts euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: VH productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 1Reihe(n) Rastermaß: 3.96mm SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 24169 Stücke: Lieferzeit 14-21 Tag (e) |
