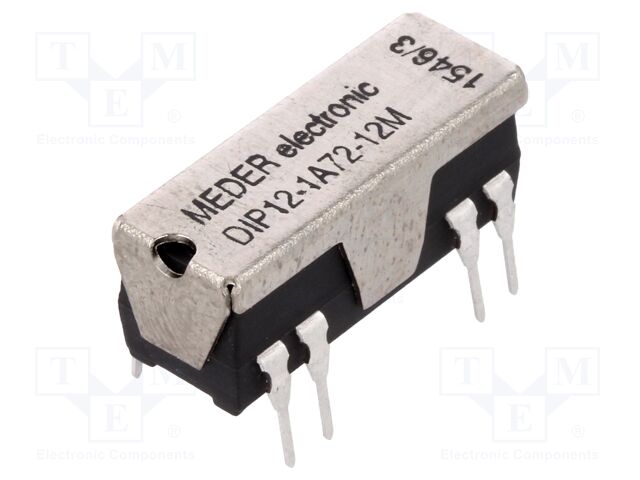

DIP12-1A72-12M MEDER
Hersteller: MEDER
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 1kΩ
Coil power consumption: 145mW
Mounting: PCB
Case: DIP14
Contact resistance: 0.15Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 20.5x8.2x8mm
Terminal pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 1A
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 1kΩ
Coil power consumption: 145mW
Mounting: PCB
Case: DIP14
Contact resistance: 0.15Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 20.5x8.2x8mm
Terminal pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 381 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 17+ | 4.43 EUR |
| 18+ | 3.98 EUR |
| 23+ | 3.22 EUR |
| 24+ | 3.05 EUR |
| 504+ | 2.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DIP12-1A72-12M MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 1A, Switched voltage: max. 200V AC; max. 200V DC, Coil resistance: 1kΩ, Coil power consumption: 145mW, Mounting: PCB, Case: DIP14, Contact resistance: 0.15Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 16V DC, Operating temperature: -20...70°C, Soldering temperature: 260°C, Body dimensions: 20.5x8.2x8mm, Terminal pitch: 2.54mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote DIP12-1A72-12M nach Preis ab 3.05 EUR bis 4.43 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DIP12-1A72-12M | Hersteller : MEDER |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW Type of relay: reed switch Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 1A Switched voltage: max. 200V AC; max. 200V DC Coil resistance: 1kΩ Coil power consumption: 145mW Mounting: PCB Case: DIP14 Contact resistance: 0.15Ω Coil voltage min.: 8.4V DC Coil voltage max.: 16V DC Operating temperature: -20...70°C Soldering temperature: 260°C Body dimensions: 20.5x8.2x8mm Terminal pitch: 2.54mm |
auf Bestellung 381 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
DIP12-1A72-12M | Hersteller : StandexMeder Electronics GmbH |
 Reed Relay 12VDC 1KOhm 0.5A SPST-NO(20.5x7.62x8.2)mm THT Dry |
Produkt ist nicht verfügbar |
|||||||||||
 |
DIP12-1A72-12M | Hersteller : MEDER electronic (Standex) | Reed Relays |
Produkt ist nicht verfügbar |
