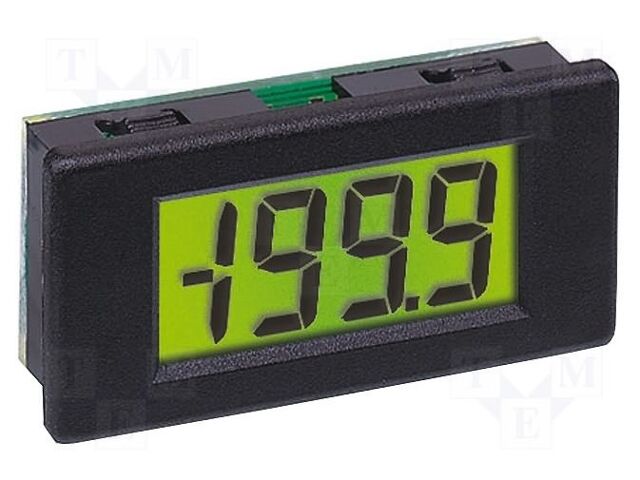

DPM 2AS-BL LASCAR
Hersteller: LASCAR
Category: Voltmeters
Description: Voltmeter; digital,mounting; VDC: 0÷200mV; on panel; LCD; 350uA
Type of meter: voltmeter
Measurement: DC voltage
Kind of display used: LCD
Display parameters: 3,5 digit
DC voltage measuring range: 0...200mV
Mounting: on panel
Sampling: 2,5x/s
Measuring instrument features: automatic polarization selection; autozeroing; decimal point place selection; measures voltage in relation to ground of internal supply source
DC voltage measuring accuracy: ±(0.1% + 1 digit)
Supply voltage: 3...7.5V DC; 6...15V DC
Dimensions (W x H x D): 35x17x9.6mm
Illumination: yes
Kind of meter: digital; mounting
Digit height: 8.25mm
Mechanical mounting: snap fastener
Illumination voltage: 5V
Current consumption: 350µA
Mounting hole diameter: 32.5x14.5mm
Linearity: ±1
Anzahl je Verpackung: 1 Stücke
Category: Voltmeters
Description: Voltmeter; digital,mounting; VDC: 0÷200mV; on panel; LCD; 350uA
Type of meter: voltmeter
Measurement: DC voltage
Kind of display used: LCD
Display parameters: 3,5 digit
DC voltage measuring range: 0...200mV
Mounting: on panel
Sampling: 2,5x/s
Measuring instrument features: automatic polarization selection; autozeroing; decimal point place selection; measures voltage in relation to ground of internal supply source
DC voltage measuring accuracy: ±(0.1% + 1 digit)
Supply voltage: 3...7.5V DC; 6...15V DC
Dimensions (W x H x D): 35x17x9.6mm
Illumination: yes
Kind of meter: digital; mounting
Digit height: 8.25mm
Mechanical mounting: snap fastener
Illumination voltage: 5V
Current consumption: 350µA
Mounting hole diameter: 32.5x14.5mm
Linearity: ±1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 52.94 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DPM 2AS-BL LASCAR
Category: Voltmeters, Description: Voltmeter; digital,mounting; VDC: 0÷200mV; on panel; LCD; 350uA, Type of meter: voltmeter, Measurement: DC voltage, Kind of display used: LCD, Display parameters: 3,5 digit, DC voltage measuring range: 0...200mV, Mounting: on panel, Sampling: 2,5x/s, Measuring instrument features: automatic polarization selection; autozeroing; decimal point place selection; measures voltage in relation to ground of internal supply source, DC voltage measuring accuracy: ±(0.1% + 1 digit), Supply voltage: 3...7.5V DC; 6...15V DC, Dimensions (W x H x D): 35x17x9.6mm, Illumination: yes, Kind of meter: digital; mounting, Digit height: 8.25mm, Mechanical mounting: snap fastener, Illumination voltage: 5V, Current consumption: 350µA, Mounting hole diameter: 32.5x14.5mm, Linearity: ±1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote DPM 2AS-BL nach Preis ab 52.94 EUR bis 96.54 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
DPM 2AS-BL | Hersteller : LASCAR |
Category: Voltmeters Description: Voltmeter; digital,mounting; VDC: 0÷200mV; on panel; LCD; 350uA Type of meter: voltmeter Measurement: DC voltage Kind of display used: LCD Display parameters: 3,5 digit DC voltage measuring range: 0...200mV Mounting: on panel Sampling: 2,5x/s Measuring instrument features: automatic polarization selection; autozeroing; decimal point place selection; measures voltage in relation to ground of internal supply source DC voltage measuring accuracy: ±(0.1% + 1 digit) Supply voltage: 3...7.5V DC; 6...15V DC Dimensions (W x H x D): 35x17x9.6mm Illumination: yes Kind of meter: digital; mounting Digit height: 8.25mm Mechanical mounting: snap fastener Illumination voltage: 5V Current consumption: 350µA Mounting hole diameter: 32.5x14.5mm Linearity: ±1 |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
DPM 2AS-BL | Hersteller : Lascar Electronics |
Description: PROCESS METER LCD PNL MOUNT Packaging: Box Display Type: LCD - Black Characters Mounting Type: Panel Mount Type: Voltmeter Termination Style: PC Pin Voltage - Supply: 6 ~ 15VDC Measuring Range: ±200mVDC Panel Cutout Dimensions: Rectangular - 33.00mm x 15.00mm Display Characters - Height: 0.320" (8.13mm) Number of Characters Per Row: 3.5 Part Status: Active Measuring Type: Voltage |
auf Bestellung 34 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||
DPM 2AS-BL | Hersteller : LASCAR |
Description: LASCAR - DPM 2AS-BL - Digitales Einbauinstrument, LCD m. Hintergrundbeleuchtung, 3-1/2 Stellen, DC-Spannung, 0mV bis 200mV tariffCode: 90303370 rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Funktionsumfang: DC-Spannung Höhe des Frontplattenausschnitts: 14.99mm usEccn: EAR99 Betriebstemperatur, min.: 0°C Versorgungsspannung, min.: 3V Breite des Frontplattenausschnitts: 33.02mm euEccn: NLR Messbereich: 0mV bis 200mV Ziffernhöhe: 8.25mm Produktpalette: Multicomp Pro RJ45 Adapter productTraceability: No Versorgungsspannung, max.: 15VDC Betriebstemperatur, max.: 50°C Anzahl der Ziffern / Zeichen: 3-1/2 SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 11 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||
DPM2AS-BL | Hersteller : Martel Electronics | Description: VOLTMETER 0-200MVDC LCD PANEL MT |
auf Bestellung 6 Stücke: Lieferzeit 10-14 Tag (e) |
