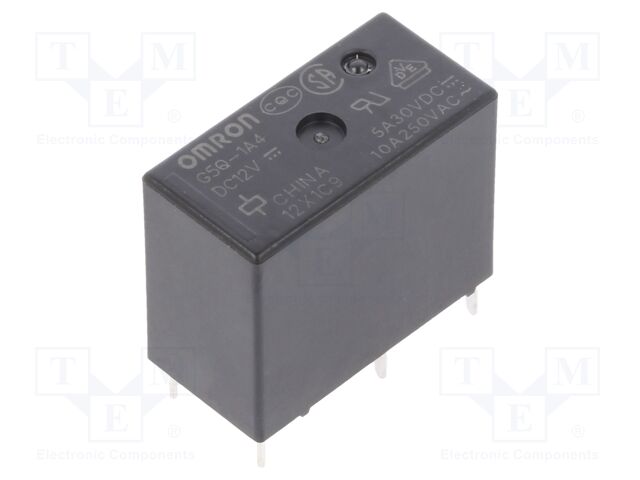

G5Q-1A4 12DC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.3x10.3x15.8mm
Operating temperature: -40...85°C
Relay series: G5Q
Contact resistance: 100mΩ
Terminal pitch: 7.62mm
Coil current: 16.7mA
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.3x10.3x15.8mm
Operating temperature: -40...85°C
Relay series: G5Q
Contact resistance: 100mΩ
Terminal pitch: 7.62mm
Coil current: 16.7mA
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G5Q-1A4 12DC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 5A, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Switched voltage: max. 30V DC; max. 277V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 720Ω, Body dimensions: 20.3x10.3x15.8mm, Operating temperature: -40...85°C, Relay series: G5Q, Contact resistance: 100mΩ, Terminal pitch: 7.62mm, Coil current: 16.7mA, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G5Q-1A4 12DC
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
G5Q-1A4 12DC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 5A AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Switched voltage: max. 30V DC; max. 277V AC Relay variant: miniature Mounting: PCB Coil resistance: 720Ω Body dimensions: 20.3x10.3x15.8mm Operating temperature: -40...85°C Relay series: G5Q Contact resistance: 100mΩ Terminal pitch: 7.62mm Coil current: 16.7mA |
Produkt ist nicht verfügbar |
