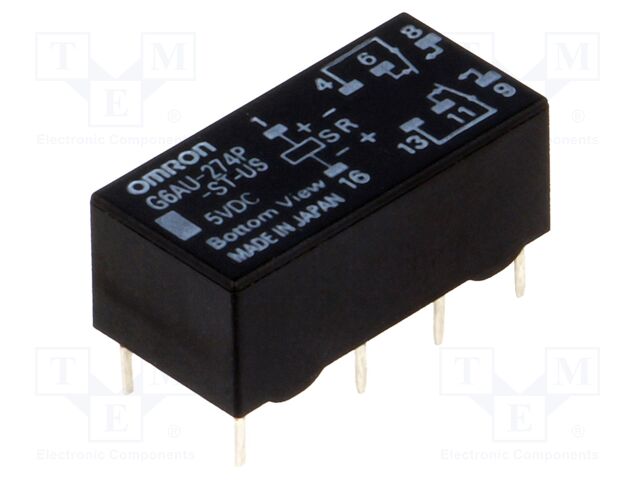

G6AU-274P-ST-US 5VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; miniature
Mounting: PCB
Coil resistance: 250Ω
Operate time: 5ms
Body dimensions: 20.2x10.1x8.4mm
Release time: 5ms
Operating temperature: -40...70°C
Relay series: G6A
Contact resistance: 50mΩ
Contact material: Ag
Terminal pitch: 5mm
Coil current: 20mA
Design: single coil
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; miniature
Mounting: PCB
Coil resistance: 250Ω
Operate time: 5ms
Body dimensions: 20.2x10.1x8.4mm
Release time: 5ms
Operating temperature: -40...70°C
Relay series: G6A
Contact resistance: 50mΩ
Contact material: Ag
Terminal pitch: 5mm
Coil current: 20mA
Design: single coil
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G6AU-274P-ST-US 5VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: bistable; miniature, Mounting: PCB, Coil resistance: 250Ω, Operate time: 5ms, Body dimensions: 20.2x10.1x8.4mm, Release time: 5ms, Operating temperature: -40...70°C, Relay series: G6A, Contact resistance: 50mΩ, Contact material: Ag, Terminal pitch: 5mm, Coil current: 20mA, Design: single coil, Anzahl je Verpackung: 1 Stücke.
