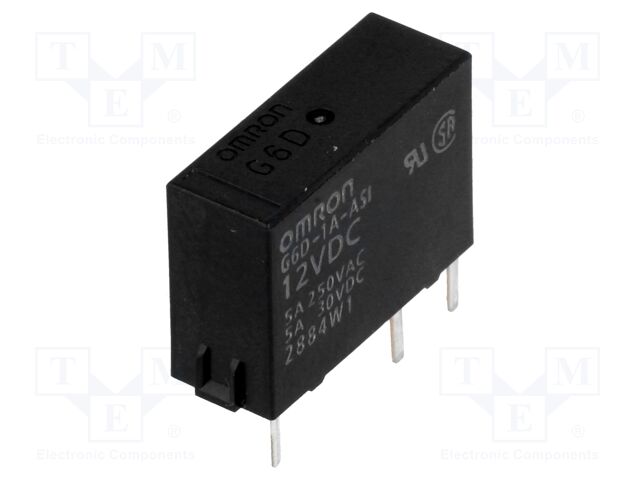

G6D-1A-ASI 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
DC contacts rating @R: 5A / 30V DC
Relay variant: miniature
Coil resistance: 720Ω
Operating temperature: -25...70°C
Body dimensions: 17.5x6.5x12.5mm
Mounting: PCB; socket
Coil power consumption: 200mW
Relay series: G6D
Contact resistance: 100mΩ
Coil current: 16.7mA
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Terminal pitch: 5.08mm
AC contacts rating @R: 5A / 250V AC
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
DC contacts rating @R: 5A / 30V DC
Relay variant: miniature
Coil resistance: 720Ω
Operating temperature: -25...70°C
Body dimensions: 17.5x6.5x12.5mm
Mounting: PCB; socket
Coil power consumption: 200mW
Relay series: G6D
Contact resistance: 100mΩ
Coil current: 16.7mA
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Terminal pitch: 5.08mm
AC contacts rating @R: 5A / 250V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 981 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
20+ | 3.59 EUR |
22+ | 3.26 EUR |
30+ | 2.4 EUR |
32+ | 2.27 EUR |
500+ | 2.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6D-1A-ASI 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 5A, DC contacts rating @R: 5A / 30V DC, Relay variant: miniature, Coil resistance: 720Ω, Operating temperature: -25...70°C, Body dimensions: 17.5x6.5x12.5mm, Mounting: PCB; socket, Coil power consumption: 200mW, Relay series: G6D, Contact resistance: 100mΩ, Coil current: 16.7mA, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 250V AC, Terminal pitch: 5.08mm, AC contacts rating @R: 5A / 250V AC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G6D-1A-ASI 12VDC nach Preis ab 2.2 EUR bis 5.73 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G6D-1A-ASI 12VDC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 5A DC contacts rating @R: 5A / 30V DC Relay variant: miniature Coil resistance: 720Ω Operating temperature: -25...70°C Body dimensions: 17.5x6.5x12.5mm Mounting: PCB; socket Coil power consumption: 200mW Relay series: G6D Contact resistance: 100mΩ Coil current: 16.7mA Operate time: 10ms Release time: 5ms Switched voltage: max. 30V DC; max. 250V AC Terminal pitch: 5.08mm AC contacts rating @R: 5A / 250V AC |
auf Bestellung 981 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
G6D-1A-ASI-12VDC | Hersteller : OMRON |
5A; 12VDC; SPST-NO; 200mW; 17,5 x 6,5 x 12,5mm PCB G6D-1A-ASI-12DC power relay P G6D-1A-ASI-12DC Anzahl je Verpackung: 25 Stücke |
auf Bestellung 38 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
G6D-1A-ASI 12VDC Produktcode: 165309 |
Relais |
Produkt ist nicht verfügbar
|
