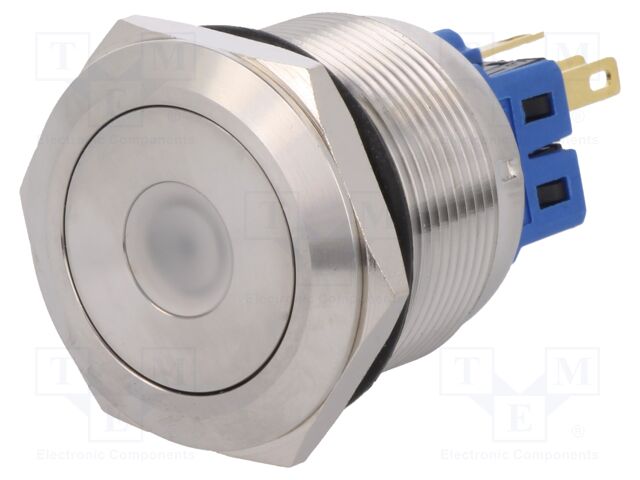

GQ25-11ZD/B/24V/S ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Contacts configuration: SPDT
Illumination: LED; point
Backlight colour: blue
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
IP rating: IP65
Mechanical durability: 1000000 cycles
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø25mm
Operating temperature: -20...55°C
Leads: for soldering
Electrical life: 50000 cycles
Stable positions number: 2
Body material: stainless steel
Body colour: silver
Max. contact resistance:: 50mΩ
Ring shape: rounded
Contact material: silver alloy
Test voltage: 2kV
Operating Force: 5N
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Contacts configuration: SPDT
Illumination: LED; point
Backlight colour: blue
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
IP rating: IP65
Mechanical durability: 1000000 cycles
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø25mm
Operating temperature: -20...55°C
Leads: for soldering
Electrical life: 50000 cycles
Stable positions number: 2
Body material: stainless steel
Body colour: silver
Max. contact resistance:: 50mΩ
Ring shape: rounded
Contact material: silver alloy
Test voltage: 2kV
Operating Force: 5N
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 17.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details GQ25-11ZD/B/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Type of switch: vandal resistant, Contacts configuration: SPDT, Illumination: LED; point, Backlight colour: blue, Illumination voltage: 24V, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, Switching method: ON-ON, IP rating: IP65, Mechanical durability: 1000000 cycles, Button shape: flat, Number of positions: 2, Mounting hole diameter: Ø25mm, Operating temperature: -20...55°C, Leads: for soldering, Electrical life: 50000 cycles, Stable positions number: 2, Body material: stainless steel, Body colour: silver, Max. contact resistance:: 50mΩ, Ring shape: rounded, Contact material: silver alloy, Test voltage: 2kV, Operating Force: 5N, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GQ25-11ZD/B/24V/S nach Preis ab 17.88 EUR bis 17.88 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
GQ25-11ZD/B/24V/S | Hersteller : ONPOW |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65 Type of switch: vandal resistant Contacts configuration: SPDT Illumination: LED; point Backlight colour: blue Illumination voltage: 24V AC contacts rating @R: 3A / 220V AC DC contacts rating @R: 5A / 24V DC Switching method: ON-ON IP rating: IP65 Mechanical durability: 1000000 cycles Button shape: flat Number of positions: 2 Mounting hole diameter: Ø25mm Operating temperature: -20...55°C Leads: for soldering Electrical life: 50000 cycles Stable positions number: 2 Body material: stainless steel Body colour: silver Max. contact resistance:: 50mΩ Ring shape: rounded Contact material: silver alloy Test voltage: 2kV Operating Force: 5N |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|
