IPL1-106-01-L-S-RA-K

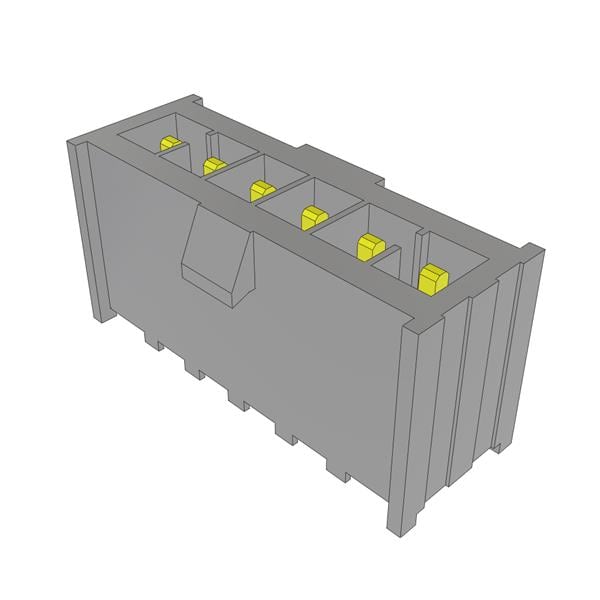

IPL1-106-01-L-S-RA-K Samtec Inc.

ipl1.pdf Hersteller: Samtec Inc.
Description: CONN HEADER R/A 6POS 2.54MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 675VAC, 954VDC
Mounting Type: Through Hole, Right Angle
Number of Positions: 6
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.085" (2.16mm)
Insulation Height: 0.240" (6.10mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.215" (5.46mm)
auf Bestellung 12514 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
6+3.45 EUR
10+ 3 EUR
100+ 2.68 EUR
500+ 2.24 EUR
1000+ 1.92 EUR
5000+ 1.7 EUR
Mindestbestellmenge: 6
Produktrezensionen
Produktbewertung abgeben

Technische Details IPL1-106-01-L-S-RA-K Samtec Inc.

Description: CONN HEADER R/A 6POS 2.54MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 675VAC, 954VDC, Mounting Type: Through Hole, Right Angle, Number of Positions: 6, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.085" (2.16mm), Insulation Height: 0.240" (6.10mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.215" (5.46mm).

Weitere Produktangebote IPL1-106-01-L-S-RA-K nach Preis ab 3.84 EUR bis 6.46 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
IPL1-106-01-L-S-RA-K IPL1-106-01-L-S-RA-K Hersteller : Samtec ipl1-2854487.pdf Headers & Wire Housings .100" Mini Mate Isolated Power Terminal Header
auf Bestellung 1063 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+6.46 EUR
102+ 4.47 EUR
510+ 3.98 EUR
1020+ 3.84 EUR
